| 型号 |
范围 |

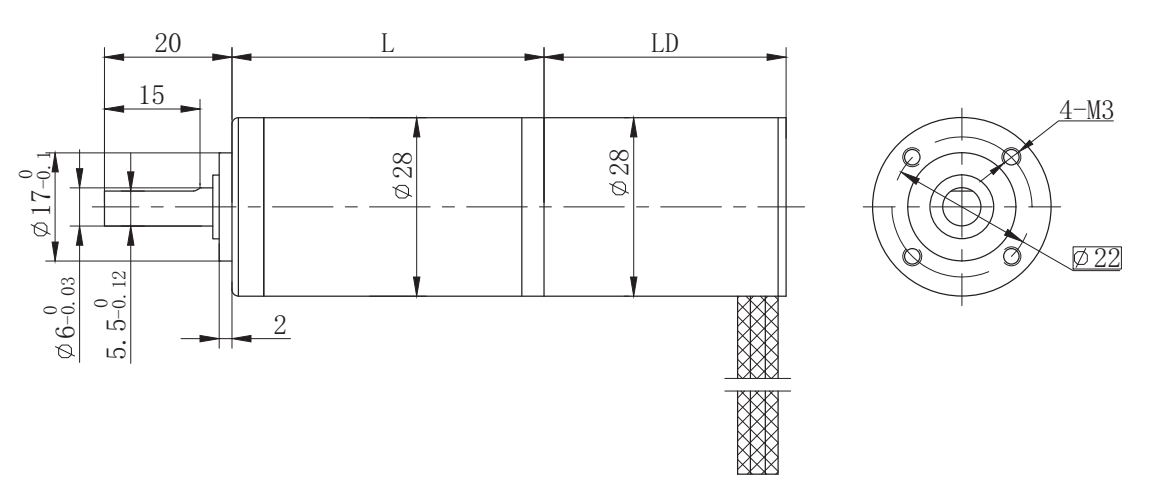

| FL28BL/28JN30K |
Φ28行星减速器，允许转矩范围：0.3N.m~3.0N.m 28mm OD Planetary Gearbox, Permissible Load Range: 0.3N.m~3.0N.m |
| U |
V | W | Vcc | Ha | Hb | Hc | GND |
| 绿Green |
红Red | 黑Black | 黄Yellow | 蓝Blue | 橙Orange | 棕Brown | 白 White |
| 电机型号 |
极 数 | 相 数 | 额定电压 | 空载转速 | 额定转速 | 额定转矩 | 额定功率 | 峰值转矩 | 峰值电流 | 电阻 | 电感 |
| TYPE |
Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| FL28BL38-2460 |
4 | 3 | 24 | 6000 | 4350 | 10 | 4.5 | 30 | 1 | 19 | 7.8 |
| FL28BL77-2460 |
4 | 3 | 24 | 6000 | 4000 | 50 | 20 | 150 | 3 | 4.2 | 2.2 |
