| 型号 |
范围 |

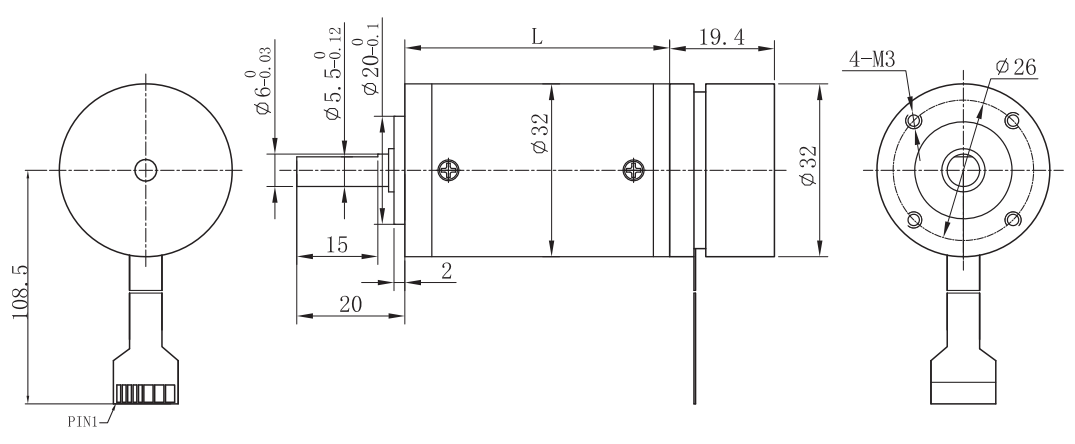

| FL32BLW18/32JM50K |
Φ32减速器，允许转矩范围：0.5N.m~5.0N.m 32mm OD Planetary Gearbox, Permissible Load Range: 0.5N.m~5.0N.m |
| 接插件Connector |
插针号Pin | 功 能Functions | 说明Description |
| FPC |
1 | V cc | Hall电源输入：+5VDC ~ +24VDC |
| 2 |
Hall W |
| 3 |
Hall U |
| 4 |
Hall V |
| 5 |
GND | Hall 接地 |
| 6 |
Phase W |
| 7 |
Phase V |
| 8 |
Phase U |
| 电机型号 |
极 数 | 相 数 | 额定电压 | 空载转速 | 额定转速 | 额定转矩 | 额定功率 | 峰值转矩 | 峰值电流 | 线电阻 | 线电感 |
| TYPE |
Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| FL32BLW18-9V-3706A |
8 | 3 | 9 | 3700 | 2100 | 29.5 | 6 | 73.8 | 3.4 | 2.87 | 1.61 |
| FL32BLW18-12V-4607A |
8 | 3 | 12 | 4600 | 2800 | 25.1 | 7 | 75.3 | 3.2 | 3.43 | 1.87 |
| FL32BLW18-24V-4507A |
8 | 3 | 24 | 4500 | 2760 | 25.5 | 7 | 76.5 | 1.7 | 13.7 | 7.73 |
| FL32BLW18-48V-4808A |
8 | 3 | 48 | 4800 | 2950 | 24.7 | 8 | 74.1 | 0.97 | 53 | 27.8 |
