| 型号 |
范围 |

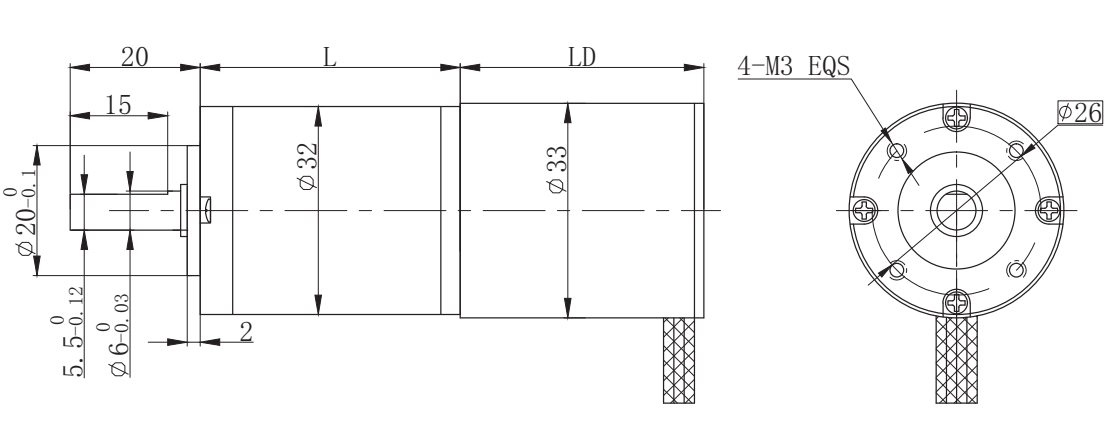

| FL33BL38/32JXE30K |
Φ32行星减速器，允许转矩范围：0.3N.m~3.0N.m 32mm OD Planetary Gearbox, Permissible Load Range: 0.3N.m~3.0N.m |
| U |
V | W | Vcc | Ha | Hb | Hc | GND |
| 绿Green |
红Red | 黑Black | 黄Yellow | 蓝Blue | 橙Orange | 棕Brown | 白 White |
| 电机型号 |
极 数 | 相 数 | 额定电压 | 空载转速 | 额定转速 | 额定转矩 | 额定功率 | 峰值转矩 | 峰值电流 | 电阻 | 电感 |
| TYPE |
Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| FL33BL38-2445 |
4 | 3 | 24 | 4500 | 3000 | 22 | 7 | 66 | 0.64 | 12.8 | 7 |
| FL33BL80-2490 |
4 | 3 | 24 | 9000 | 7800 | 50 | 40 | 350 | 11 | 0.86 | 0.55 |
