| 型号 |
范围 |

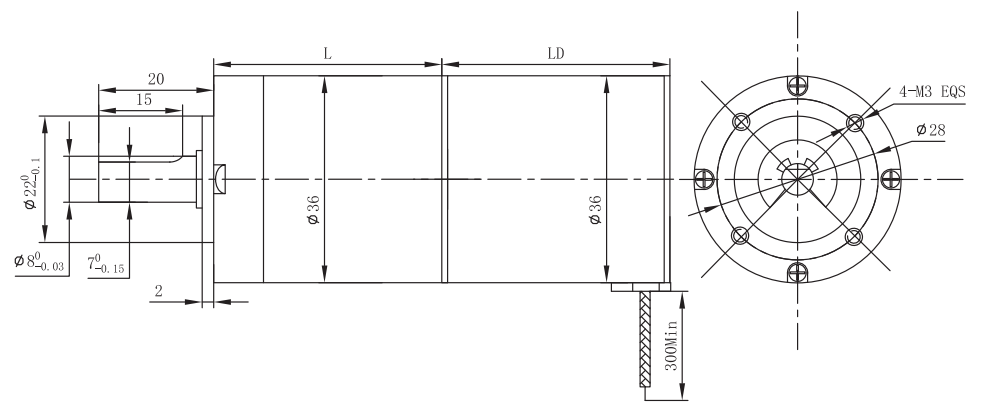

| 36RBL/36JXE30K |
Φ36行星减速器，允许转矩范围：0.3N.m~3.0N.m 36mm OD Planetary Gearbox, Permissible Load Range: 0.3N.m~3.0N.m |
| U |
V | W | Vcc | Ha | Hb | Hc | GND |
| 黄Yellow |
红Red | 黑Black | 红Red | 蓝Blue | 绿Green | 白 White | 黑 Black |
| UL1061 AWG20/24 |
UL1061 AWG26 |
| 电机型号 |
极 数 | 相 数 | 额定电压 | 空载转速 | 额定转速 | 额定转矩 | 额定功率 | 峰值转矩 | 峰值电流 | 电阻 | 电感 |
| TYPE |
Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| FL36RBLS40-24V-4818A |
4 | 3 | 24 | 7000 | 4800 | 36 | 18 | 108 | 3.7 | 2.4 | 2.1 |
| FL36RBLS57-24V-4524A |
4 | 3 | 24 | 5800 | 4500 | 50 | 24 | 150 | 4.1 | 2 | 2 |
