| 型号 |
范围 |

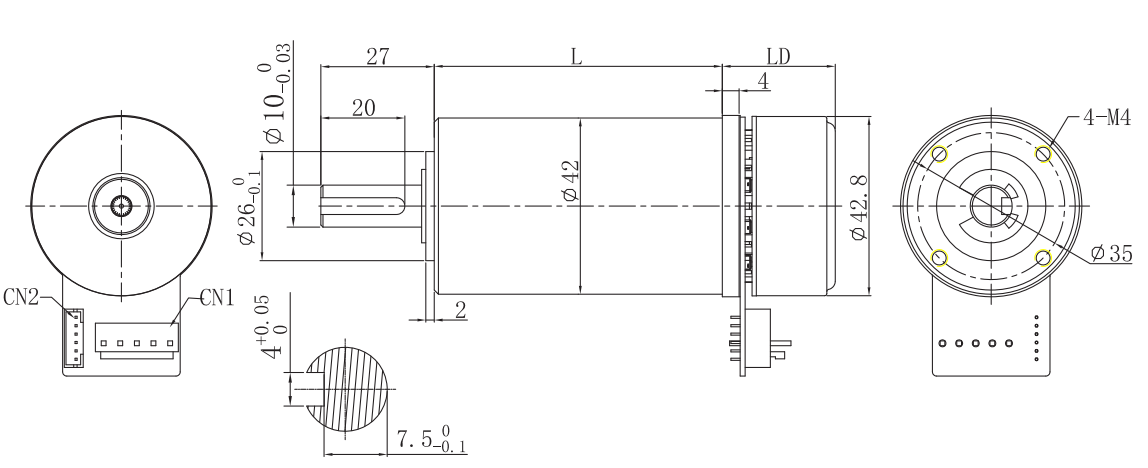

| FL45BLW /42JM150K |
Φ42减速器，允许转矩范围：1.5N.m~15N.m 42mm OD Planetary Gearbox, Permissible Load Range: 1.5N.m~15N.m |
| 电机型号 |
极 数 | 相 数 | 额定电压 | 空载转速 | 额定转速 | 额定转矩 | 额定功率 | 峰值转矩 | 峰值电流 | 线电阻 | 线电感 |
| TYPE |
Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| FL45BLW18-24V-7130A |
16 | 3 | 24 | 6500 | 5000 | 50 | 30 | 150 | 4.8 | 1.42 | 0.59 |
| FL45BLW21-24V-6750A |
16 | 3 | 24 | 6700 | 5260 | 84 | 50 | 250 | 7.1 | 0.72 | 0.33 |
| FL45BLW27-24V-6170A |
16 | 3 | 24 | 6100 | 4840 | 130 | 70 | 390 | 10 | 0.56 | 0.27 |
