| 型号 |
范围 |

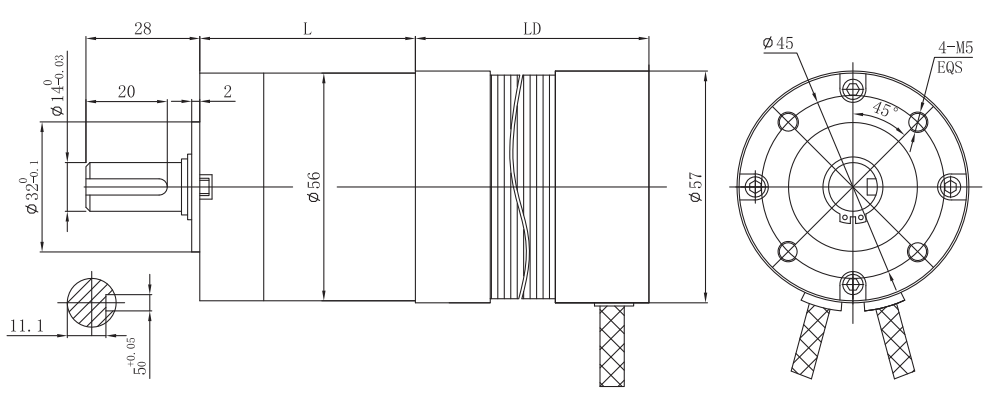

| FL57BL/56JM300K |
Φ57减速器，允许转矩范围：3N.m~30N.m 57mm OD Planetary Gearbox, Permissible Load Range:3N.m~30N.m |
| U |
V | W | Vcc | Ha | Hb | Hc | GND |
| 黄Yellow |
红Red | 黑Black | 红Red | 蓝Blue | 绿Green | 白White | 黑Black |
| UL1430 AWG20 |
UL1430 AWG20 |
| 电机型号 |
极 数 | 相 数 | 额定电压 | 空载转速 | 额定转速 | 额定转矩 | 额定功率 | 峰值转矩 | 峰值电流 | 电阻 | 电感 |
| TYPE |
Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| FL57BL54-3650 |
4 | 3 | 36 | 5000 | 4000 | 0.11 | 46 | 0.39 | 6.8 | 1.63 | 4.4 |
| FL57BL74-3650 |
4 | 3 | 36 | 5000 | 4000 | 0.22 | 99 | 0.7 | 12 | 0.64 | 2 |
