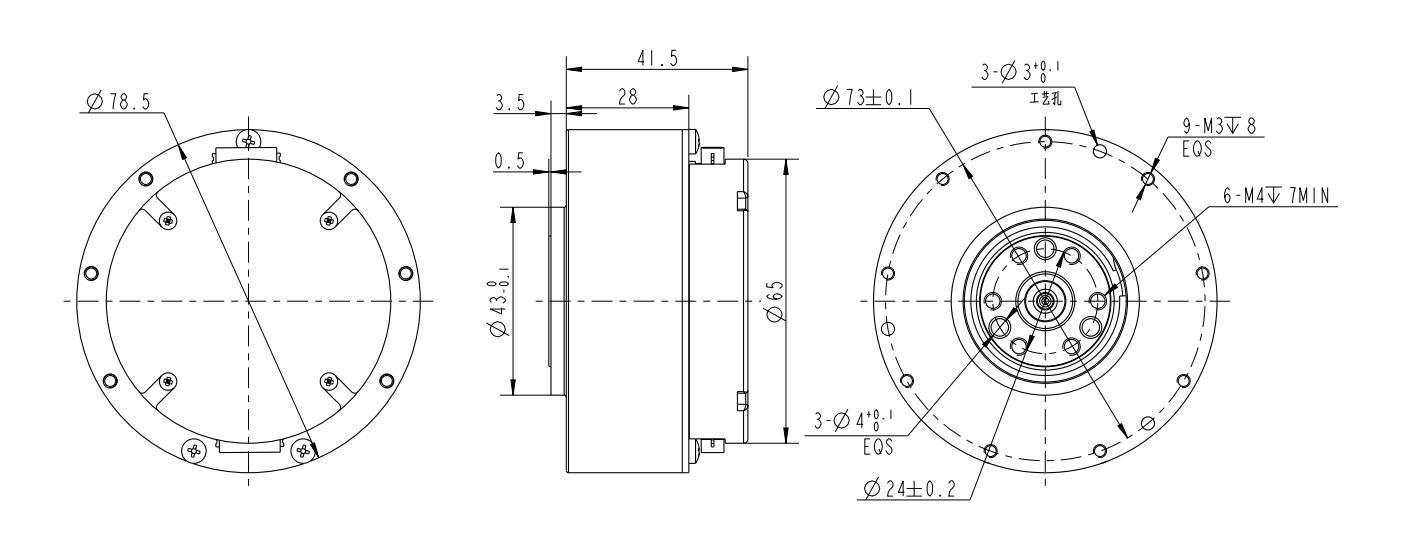

iSVD78C-48V-230-A14-002
| 科目 Item |
参数 Spec |
| 磁编码器 Magnetic Encoder |
2 pcs |
| 额定电压 Rated Voltage |
48V |
| 使用电压范围 Voltage Range |
24-60V |
| 额定输出功率 Rated Output Power |
170w ±10% |
| 额定扭矩 Rated Torque |
6N.m |
| 峰值扭矩 Peak Torque |
17N.m |
| 运转方向 Running Direction |
CW/CCW |
| 使用温度范围 Temperature Range |
-20~50℃ |
| 使用湿度范围 Humidity Range |
5~85% |
| 保存温度范围 Storage Temperature Range |
-30~70℃ |
| 绝缘等级 Insulation Level |
Class B |
| 空载转速 No-load Speed |
410 rpm ± 10% |
| 空载电流 No-load Current |
0.5 Arms |
| 额定负载转速 Rated Load Speed |
360rpm ± 10% |
| 额定负载相电流 Rated Load Phase Current |
7Apk ± 10% |
| 峰值相电流 Peak Phase Current |
23Apk ± 10% |
| 绝缘电阻/定子绕组 Insulation Resistance/ Stator Winding |
DC 500VAC，100M 0hms |
| 耐高压/定子与机壳 High Voltage Resistance/ Stator and Casing |
600VAC, 1s, 2mA |
| 电机反电势 Back-EMF |
0.096 Vrms/rpm ±10% |
| 线电阻 Line Resistance |
0.55Ω |
| 转矩常数 Torque Constant |
1.22 N.m/Arms |
| 电机电感 Inductance |
486±20%μH |
| 重量 Weight |
380g ±3g |
| 极数 Pole |
28 |
| 相数 Phase |
3 |
| 驱动方式 Drive Method |
FOC |
| 减速比 reduction ratio |
7.75 : 1 |
| 负载 Load (N.m) |
工作时间 Operating Time (s) |
| 6 |
rated |
| 6.5 |
3000 |
| 11 |
100 |
| 15 |
18 |
| 17 |
10 |
