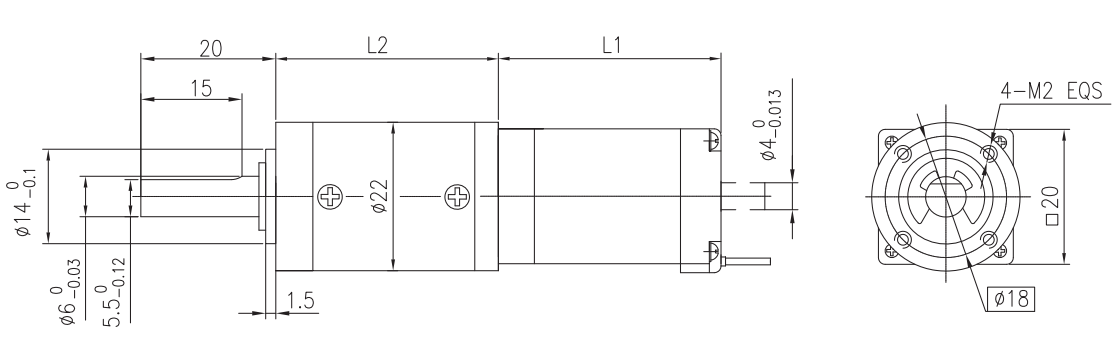

22JM20K-20STH
产品中心 减速电机
- 人工报价
| FL20STH33-0604A·额定电压 | 3.9 |
|---|---|
| FL20STH33-0604A·每相电流 | 0.6 |
| FL20STH33-0604A·每相电阻 | 6.5 |
| FL20STH33-0604A·每相电感 | 1.7 |
| FL20STH33-0604A·保持转矩 | 180 |
| FL20STH33-0604A·引出线数 | 4 |
| FL20STH33-0604A·转动惯量 | 2.0x10 -7 |
| FL20STH33-0604A·重量 | 60 |
| FL20STH33-0604A·长度 | 33 |
| FL20STH33-0604A·适配减速比 | ≤1:369 |
| FL20STH42-0804A·额定电压 | 4.32 |
| FL20STH42-0804A·每相电流 | 0.8 |
| FL20STH42-0804A·每相电阻 | 5.4 |
| FL20STH42-0804A·每相电感 | 1.5 |
| FL20STH42-0804A·保持转矩 | 300 |
| FL20STH42-0804A·引出线数 | 4 |
| FL20STH42-0804A·转动惯量 | 3.6x10 -7 |
| FL20STH42-0804A·重量 | 80 |
| FL20STH42-0804A·长度 | 42 |
| FL20STH42-0804A·适配减速比 | ≤1:264 |
产品详情
产品中心 减速电机
行星齿轮减速器 Planetary Gearhead
| 内齿圈材料 Ring material | 金属 metal |
| 输出轴轴承形式 Bearing at output | 滚动轴承Ball bearings |
| 最大允许径向负载（离法兰10mm处） Max. Radial load（10mm from flange） | 50N |
| 最大允许轴向负载 Max. shaft axial load | 30N |
| 径向间隙（测量点尽量接近法兰）Radial play of shaft（near to flange） | ≤0.08 mm |
| 轴向间隙 Axial play of shaft | ≤0.3 mm |
行星减速器性能 Planetary Gearbox Specifications
| 减 速 比 Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 |
| 精确减速比 Accurate Reduction Ratio | 63/17 | 57/11 | 3969/289 | 3591/187 | 3249/121 | 250047/4913 | 226233/3179 | 204687/2057 | 185193/1331 | 538861/2857 | 1119000/4243 | 3661450/9929 |
| 减速级数 Number of gear trains | 1 | 2 | 3 | 4 | ||||||||
| 减速器长度(L2) Length(L2) mm | 23.4 | 30 | 36.4 | 42.8 | ||||||||
| 最大额定转矩 kg.cm Max. rated torque | 6 | 10 | 20 | 20 | ||||||||
| 瞬间允许转矩 kg.cm Short time permissible torque | 20 | 30 | 60 | 60 | ||||||||
| 效 率 Efficiency % | 0.9 | 0.81 | 0.73 | 0.66 | ||||||||
| 背隙（无负载时）Backlash at no-load | 0.6° | 1.0° | 1.5° | 1.5° | ||||||||
| 重 量 Weight g | 31 | 37 | 43 | 49 |
该款电机可以根据客户需求定制。
