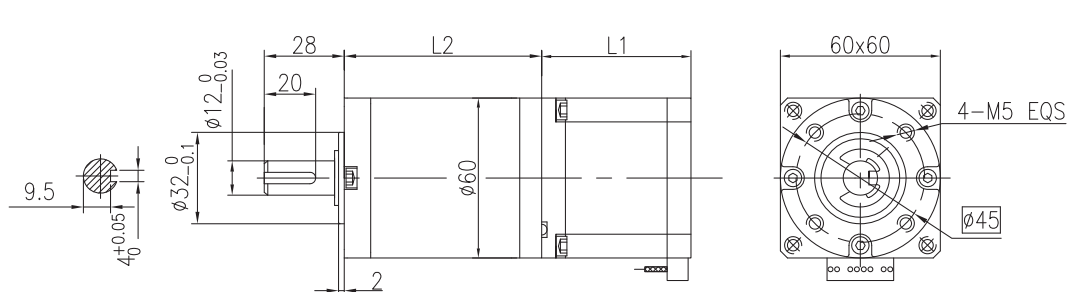

60JMS300K-60STH
产品中心 减速电机
- 人工报价
| 内齿圈材料 Ring material | 金属 metal |
|---|---|
| 输出轴轴承形式 Bearing at output | 滚动轴承Ball bearings |
| 最大允许径向负载（离法兰12mm处） | 300N |
| Max. Radial load（12mm from flange） | |
| 最大允许轴向负载 Max. shaft axial load | 200N |
| 径向间隙（测量点尽量接近法兰） | ≤0.08 mm |
| Radial play of shaft（near to flange） | |
| 轴向间隙 Axial play of shaft | ≤0.4 mm |
| FL60STH45-2008AF·额定电压 | 2.1 |
| FL60STH45-2008AF·每相电流 | 2.8 |
| FL60STH45-2008AF·每相电阻 | 0.75 |
| FL60STH45-2008AF·每相电感 | 2 |
| FL60STH45-2008AF·保持转矩 | 11 |
| FL60STH45-2008AF·引出线数 | 8 |
| FL60STH45-2008AF·转动惯量 | 275 |
| FL60STH45-2008AF·重量 | 0.6 |
| FL60STH45-2008AF·长度 | 47 |
| FL60STH45-2008AF·适配减速比 | ≤1:115 |
| FL60STH56-2008AF·额定电压 | 2.52 |
| FL60STH56-2008AF·每相电流 | 2.8 |
| FL60STH56-2008AF·每相电阻 | 0.9 |
| FL60STH56-2008AF·每相电感 | 3.6 |
| FL60STH56-2008AF·保持转矩 | 16.5 |
| FL60STH56-2008AF·引出线数 | 8 |
| FL60STH56-2008AF·转动惯量 | 300 |
| FL60STH56-2008AF·重量 | 0.77 |
| FL60STH56-2008AF·长度 | 56 |
| FL60STH56-2008AF·适配减速比 | ≤1:77 |
产品详情
产品中心 减速电机
行星齿轮减速器性能 Planetary Gearbox Specifications
| 减 速 比 Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 |
| 精确减速比 Accurate Reduction Ratio | 18/5 | 17/4 | 324/25 | 153/10 | 289/16 | 24898 | 5932/125 | 1337/25 | 2601/40 | 4913/64 | 289/3 | 1088/8 |
| 减速级数 Number of gear trains | 1 | 2 | 3 | |||||||||
| 减速器长度(L2) Length(L2)mm | 37.8 | 49.4 | 60.8 | |||||||||
| 最大额定转矩kg.cm Max. rated torque | 90 | 150 | 300 | |||||||||
| 瞬间允许转矩kg.cm Short time permissible torque | 270 | 450 | 900 | |||||||||
| 效 率 Efficiency% | 0.9 | 0.81 | 0.73 | |||||||||
| 背隙（无负载时）Backlash at no-load | 0.5° | 1.0° | 1.5° | |||||||||
| 重 量 Weight g | 500 | 688 | 876 |
