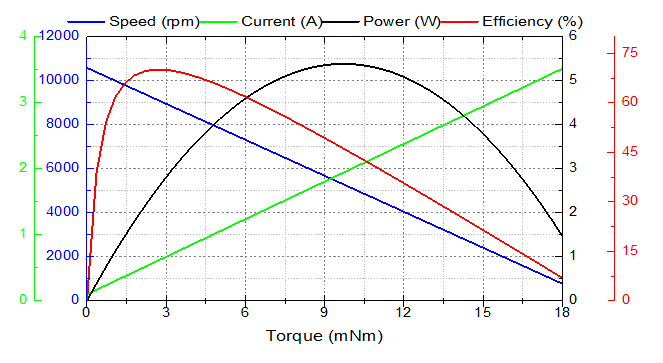

FL14SBL
产品中心 无齿无槽电机
- 人工报价
| 绕组连接方式 ( Winding Type ) | 星形 ( Star connection) |
|---|---|
| 介电强度 ( Dielectric Strength ) | 600VAC/1S |
| 绝缘电阻( Insulation Resistance ) | 100MΩ, 500VDC |
| 环境温度 ( Ambient Temperature ) | -20°C ~ +50°C |
| 绝缘等级 (Insulation Class) | Class B |
| 径向间隙 ( Radial Play ) | 0.025mm@4N |
| 轴向间隙 ( Axial Play ) | 0.3mm@4N |
| 最大径向负载 ( Max radial force ) | 15N距法兰10mm ( 10mm From the flange) |
| 最大轴向负载 ( Max axial force) | 5N |
| 极数 ( Number of poles ) | 2 |
| 相数 ( Number of phases ) | 3 |
| 额定电压 ( Rated voltage ) | VDC | 6 |
| 空载转速 (No load speed) | RPM | 11000 |
| 空载电流 (No load current) | A | 0.1 |
| 额定转矩 ( Rated torque) | mN.m | 3.6 |
| 额定电流 (Rated current) | A | 0.8 |
| 额定速度 ( Rated speed ) | RPM | 10000 |
| 额定功率 ( Rated power ) | W | 3.8 |
| 额定效率 (Rated efficiency) | % | 70% |
| 峰值转矩 ( Peak torque ) | mN.m | 10.8 |
| 峰值电流 ( Peak current ) | A | 2.4 |
| 线电阻 ( Line to line resistance ) | ohms@20℃ | 1.3 |
| 线电感 ( Line to line inductance ) | mH | 0.06 |
| 转矩常数 ( Torque constant ) | mNm/A | 5.27 |
| 反电势 ( Back EMF ) | Vrms/Krpm | 0.39 |
| 电机热时间常数(Motor thermal time constant) | S | 869 |
| 绕组最高允许温度(Max temperature of winding) | ℃ | 155 |
| 电气时间常数(Electrical time constant) | ms | 0.046 |
| 线颜色( Color) | 线型号(Type) | 功能( Functions) |
| 黄色(Yellow) | UL1332 AWG20 | U相 ( Phase U ) |
| 红色( Red) | V相 ( Phase V ) |
| 黑色(Black) | W相 ( Phase W ) |
产品详情
产品中心 无齿无槽电机
该款电机可以根据客户需求定制。
