FL16SBL
产品中心 无齿无槽电机
- 人工报价
| 绕组连接方式 ( Winding Type ) | 星形 ( Star connection) |
|---|---|
| 介电强度 ( Dielectric Strength ) | 600VAC/1S |
| 绝缘电阻( Insulation Resistance ) | 100MΩ, 500VDC |
| 环境温度 ( Ambient Temperature ) | -20°C ~ +50°C |
| 绝缘等级 (Insulation Class) | Class B |
| 径向间隙 ( Radial Play ) | 0.02mm@4N |
| 轴向间隙 ( Axial Play ) | 0.3mm@4N |
| 最大径向负载 ( Max radial force ) | 15N距法兰10mm ( 10mm From the flange) |
| 最大轴向负载 ( Max axial force) | 5N |
| 线颜色( Color) | 线型号(Type) | 功能( Functions) |
| 黄色(Yellow) | UL1430 AWG26 | U相 ( Phase U ) |
| 红色( Red) | V相 ( Phase V ) |
| 黑色(Black) | W相 ( Phase W ) |
| FL16SBL40-24V-300-10A | 123.42 KB |
| FL16SBL56-24V-3000-24A 样册图纸 | 123.31 KB |
| FL16SBL28-12V-270-4A | 130.47 KB |
产品详情
产品中心 无齿无槽电机

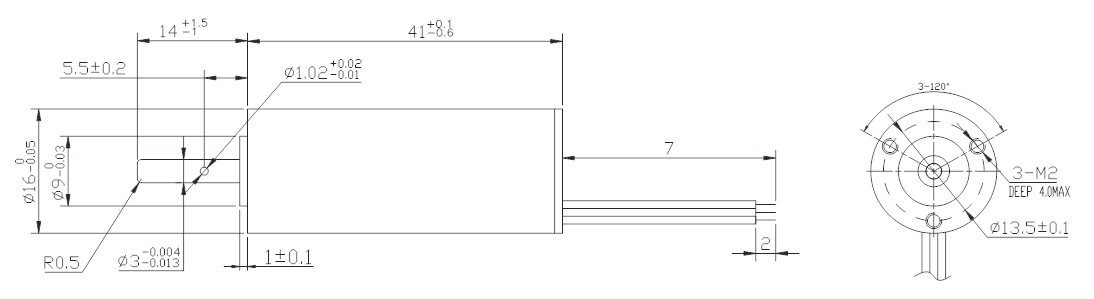

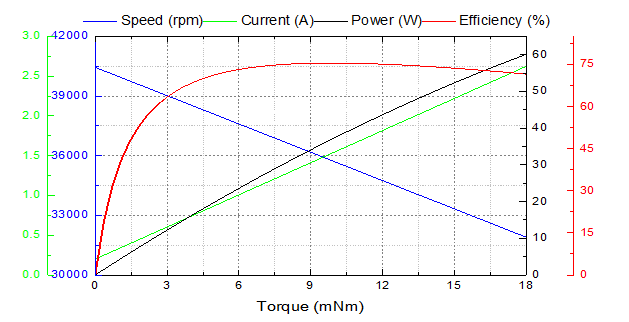

电性能 (Electrical Specifications)
| 单 位 (Unit) | FL16SBL40-32V-400-21A-5 | FL16SBL40-6V-12000-X | |
| 极数 ( Number of poles ) | 2 | 2 | |
| 相数 ( Number of phases ) | 3 | 3 | |
| 空载转速 (No load speed) | RPM | 40000 | 12000 |
| 空载电流 (No load current) | A | 0.2 | 0.2 |
| 额定转矩 ( Rated torque) | mN.m | 6 | 2.5 |
| 额定电流 (Rated current) | A | 1 | 0.5 |
| 额定速度 ( Rated speed ) | RPM | 35000 | 10000 |
| 额定功率 ( Rated power ) | W | 22 | 2.6 |
| 额定效率 (Rated efficiency) | % | 80% | 75 |
| 峰值转矩 ( Peak torque ) | mN.m | 18 | 7.5 |
| 峰值电流 ( Peak current ) | A | 2.4 | 1.5 |
| 线电阻 ( Line to line resistance ) | ohms@20℃ | 2.25 | 1.4 |
| 线电感 ( Line to line inductance ) | mH | 0.13 | 0.07 |
| 转矩常数 ( Torque constant ) | mNm/A | 7.43 | 4.7 |
| 反电势 ( Back EMF ) | Vrms/Krpm | 0.55 | 0.35 |
| 外壳-环境热阻( Housing - Ambient thermal resistance) | K/W | 8.4 | |
| 电机热时间常数(Motor thermal time constant) | S | 762 | |
| 绕组最高允许温度(Max temperature of winding) | ℃ | 155 | |
| 电气时间常数(Electrical time constant) | ms | 0.057 |
该款电机可以根据客户需求定制。
