FL28CBLA-IE
产品中心 一体化系列
- 人工报价
| 极数 ( Number of poles ) | 8 |
|---|---|
| 相数 ( Number of phases ) | 3 |
| 额定电压 ( Rated voltage ) | VDC | 24 | 24 |
| 额定转矩 ( Rated torque) | mN.m | 28 | 50 |
| 连续运行转矩 ( Continuous stall torque) | mN.m | 33.6 | 60 |
| 额定速度 ( Rated speed ) | RPM | 4000 | 4500 |
| 额定功率 ( Rated power ) | W | 12 | 24 |
| 峰值转矩 ( Peak torque ) | mN.m | 38.9 | 70 |
| 峰值电流 ( Peak current ) | A | 1.0 | 2.0 |
| 线电阻 ( Line to line resistance ) | ohms@20℃ | 5.7 | 2.5 |
| 线电感 ( Line to line inductance ) | mH | 2.48 | 1.2 |
| 转矩常数 ( Torque constant ) | mNm/A | 42.8 | 36.2 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 3.165 | 2.68 |
| 转动惯量 ( Rotor inertia ) | g.cm2 | 5.8 | 7.3 |

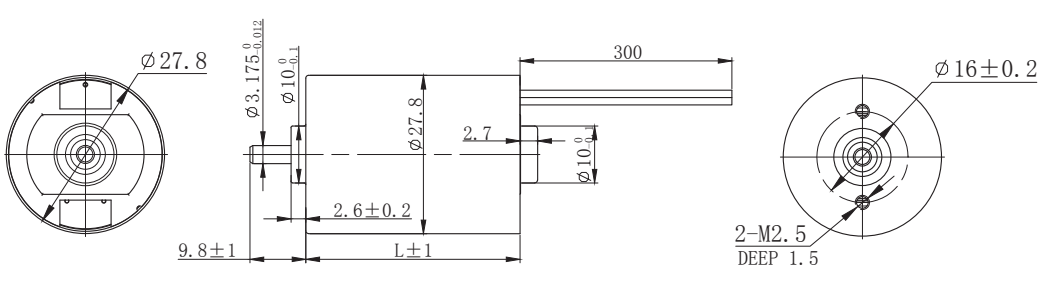

| 机身长度 ( Motor length ) L | mm | 38 | 48 |
| 重量 ( Weight ) | Kg | 0.095 | 0.12 |
| FL28CBLA38-24V-4012A-IE | 215.86 KB |
| FL28CBLA48-24V-4524A-IE | 212.55 KB |
