FL28SBL
产品中心 无齿无槽电机
- 人工报价

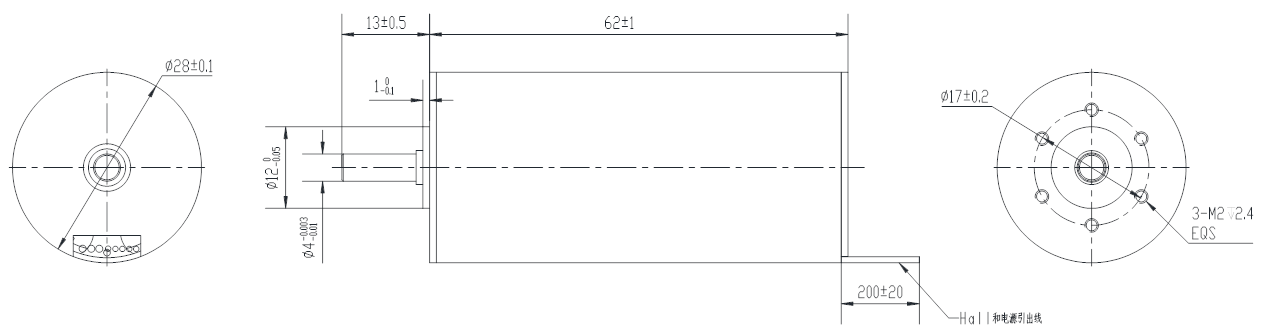

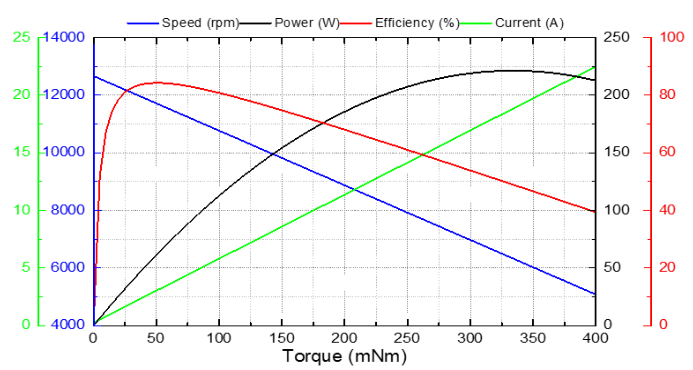

| 绕组连接方式 ( Winding Type ) | 星形 ( Star connection) |
|---|---|
| 介电强度 ( Dielectric Strength ) | 600VAC/1S |
| 绝缘电阻( Insulation Resistance ) | 100MΩ, 500VDC |
| 环境温度 ( Ambient Temperature ) | -20°C ~ +50°C |
| 绝缘等级 (Insulation Class) | Class B |
| 径向间隙 ( Radial Play ) | 0.02mm@4N |
| 轴向间隙 ( Axial Play ) | 0.14mm@4N |
| 最大径向负载 ( Max radial force ) | 10N距法兰5mm ( 5mm From the flange) |
| 最大轴向负载( Max axial force) | 4N |
| 极数 ( Number of poles ) | 2 | 2 |
| 相数 ( Number of phases ) | 3 | 3 |
| 额定电压 ( Rated voltage ) | VDC | 24 | 24 |
| 空载转速 (No load speed) | RPM | 13000 | 9000 |
| 空载电流 (No load current) | A | 0.35 | 0.3 |
| 额定转矩 ( Rated torque) | mN.m | 60 | 50 |
| 额定电流 (Rated current) | A | 3.6 | 2.3 |
| 额定速度 ( Rated speed ) | RPM | 11500 | 8200 |
| 额定功率 ( Rated power ) | W | 72.5 | 43 |
| 额定效率 (Rated efficiency) | % | 84.9 | 80.3 |
| 峰值转矩 ( Peak torque ) | mN.m | 180 | 150 |
| 峰值电流 ( Peak current ) | A | 14.5 | 6.9 |
| 线电阻 ( Line to line resistance ) | ohms@20℃ | 0.54 | 0.8 |
| 线电感 ( Line to line inductance ) | mH | 0.088 | 0.142 |
| 转矩常数 ( Torque constant ) | mNm/A | 17.9 | 25.27 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 1.33 | 1.87 |
| 电机热时间常数(Motor thermal time constant) | S | 1241 | 1153 |
| 绕组最高允许温度(Max temperature of winding) | ℃ | 155 | 155 |
| 电气时间常数(Electrical time constant) | ms | 0.163 | 0.18 |
| 线颜色( Color) | 线型号(Type) | 功能( Functions) |
| 红色(Red) | AFR250-SY AWG26 | 霍尔电源正(Vcc) |
| 蓝色(Blue) | 霍尔 W ( Hw ) |
| 绿色(Green) | 霍尔 V ( Hv ) |
| 白色(White) | 霍尔 U ( Hu ) |
| 黑色(Black) | W相 ( Phase W ) |
| 黄色(Yellow) | UL1332 AWG20 | U相 ( Phase U ) |
| 红色( Red) | V相 ( Phase V ) |
产品详情
产品中心 无齿无槽电机
该款电机可以根据客户需求定制。
