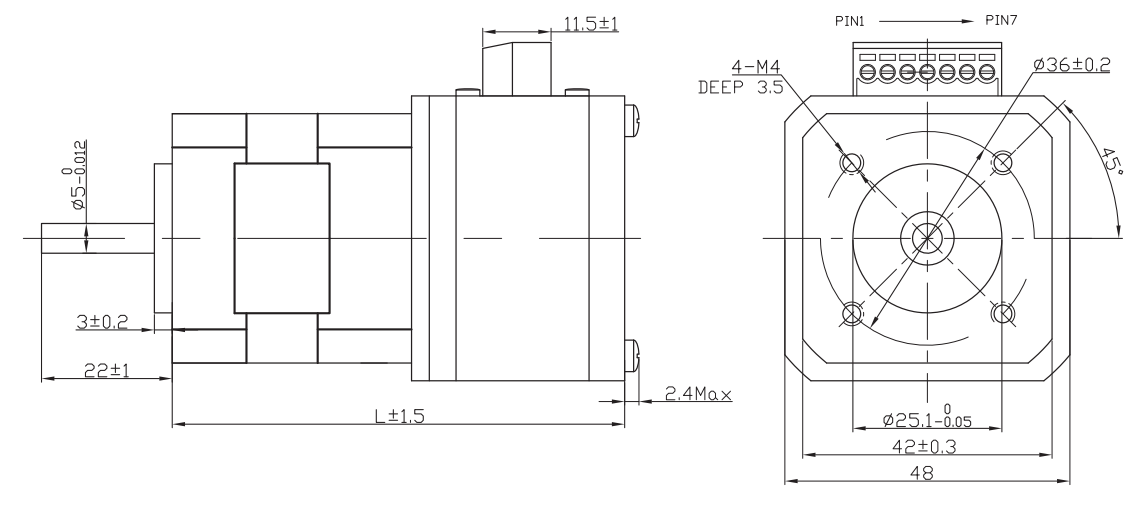

FL42BLS-IE
产品中心 一体化系列
- 人工报价
| 极数 ( Number of poles ) | 8 |
|---|---|
| 相数 ( Number of phases ) | 3 |
| 额定电压 ( Rated voltage ) | VDC | 24 |
| 额定转矩 ( Rated torque) | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| 连续运行转矩 ( Continuous stall torque) | N.m | 0.075 | 0.15 | 0.22 | 0.3 |
| 额定速度 ( Rated speed ) | RPM | 4000 | 4000 | 4000 | 4000 |
| 额定功率 ( Rated power ) | W | 26 | 52 | 78 | 104 |
| 峰值转矩 ( Peak torque ) | N.m | 0.11 | 0.18 | 0.28 | 0.28 |
| 峰值电流 ( Peak current ) | A | 3.5 | 5.0 | 7.5 | 7.5 |
| 线电阻 ( Line to line resistance ) | ohms@20℃ | 1.5 | 0.8 | 0.43 | 0.3 |
| 线电感 ( Line to line inductance ) | mH | 2.1 | 1.2 | 0.71 | 0.5 |
| 转矩常数 ( Torque constant ) | N.m/A | 0.033 | 0.036 | 0.037 | 0.035 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 2.45 | 2.71 | 2.74 | 2.62 |
| 转动惯量 ( Rotor inertia ) | g.cm2 | 24 | 48 | 72 | 96 |
| 机身长度 ( Motor length ) L | mm | 77 | 97 | 137 | 157 |
| 重量 ( Weight ) | Kg | 0.45 | 0.6 | 0.8 | 0.95 |
| FL42BLS01-IE | 324.12 KB |
| FL42BLS02-IE | 324.99 KB |
| FL42BLS03-IE | 324.73 KB |
| FL42BLS04-IE | 325.34 KB |
产品详情
产品中心 一体化系列
该款电机可以根据客户需求定制。
规格书下载：1690207590360580 1690207590527693 1690207590481317 1690207591924543
