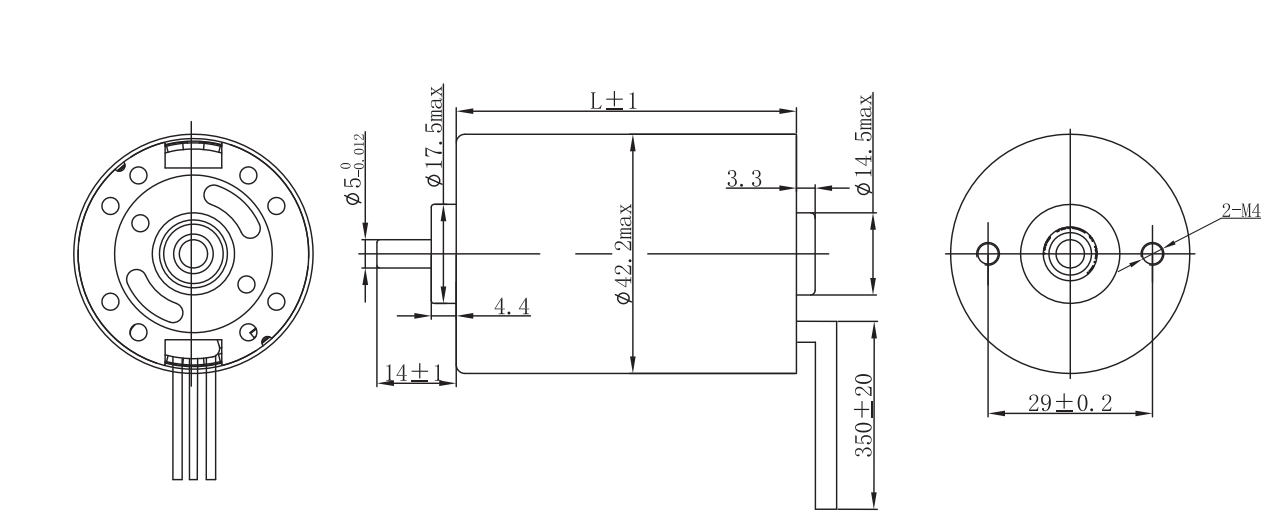

FL42CBL
产品中心 经济型无刷电机
- 人工报价
| 绕组连接方式 ( Winding Type ) | 星形 ( Star connection) |
|---|---|
| 霍尔分布角度 ( Hall Effect Angle ) | 120度电角度 ( Electrical Angle of 120 degree) |
| 径向间隙 ( Radial Play ) | 0.02mm@450g |
| 轴向间隙 ( Axial Play ) | 0.08mm@450g |
| 最大径向负载 ( Max radial force ) | 15N 距法兰10mm ( 10mm From the flange) |
| 最大轴向负载 ( Max axial force ) | 10N |
| 介电强度 ( Dielectric Strength ) | 600VAC/1S |
| 绝缘电阻 ( Insulation Resistance ) | 100MΩ, 500VDC |
| 环境温度 ( Ambient Temperature ) | -20°C ~ +50°C |
| 绝缘等级 (Insulation Class) | Class B |
| 引出线型号Type | 引出线颜色Color | 功能Functions |
| UL1430 AWG26 | 红色 ( Red) | 霍尔电源正 ( Vcc ) |
| 蓝色 ( Blue ) | 霍尔 U ( Hu ) |
| 绿色 ( Green ) | 霍尔 V ( Hv ) |
| 白色 ( White ) | 霍尔 W ( Hw ) |
| 黑色 ( Black) | W相 ( Phase W ) |
| UL1332 AWG22 | 黄色 (Yellow ) | U相 ( Phase U ) |
| 红色 ( Red) | V相 ( Phase V ) |
| 极数 ( Number of poles ) | 8 |
| 相数 ( Number of phases ) | 3 |
| 额定电压 ( Rated voltage ) | VDC | 24 |
| 额定转矩 ( Rated torque) | mN.m | 120 | 68 | 150 |
| 连续运行转矩 ( Continuous stall torque) | mN.m | 144 | 81.6 | 180 |
| 额定速度 ( Rated speed ) | RPM | 3200 | 5900 | 4000 |
| 额定功率 ( Rated power ) | W | 40 | 43 | 63 |
| 峰值转矩 ( Peak torque ) | mN.m | 360 | 204 | 450 |
| 峰值电流 ( Peak current ) | A | 6.7 | 6.3 | 11.2 |
| 线电阻 ( Line to line resistance ) | ohms@20℃ | 1.2 | 0.6 | 0.75 |
| 线电感 ( Line to line inductance ) | mH | 1.6 | 0.63 | 0.8 |
| 转矩常数( Torque constant ) | mN.m/A | 54 | 32.4 | 40.5 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 4.0 | 2.4 | 3 |
| 转动惯量 ( Rotor inertia ) | g.cm2 | 44 | 44 | 55 |
| 机身长度 ( Motor length ) L | mm | 60 | 60 | 66 |
| 重量 ( Weight ) | Kg | 0.35 | 0.35 | 0.44 |
| FL42CBL66-24V-4063A | 240.67 KB |
| FL42CBL60-24V-3240A | 377.33 KB |
