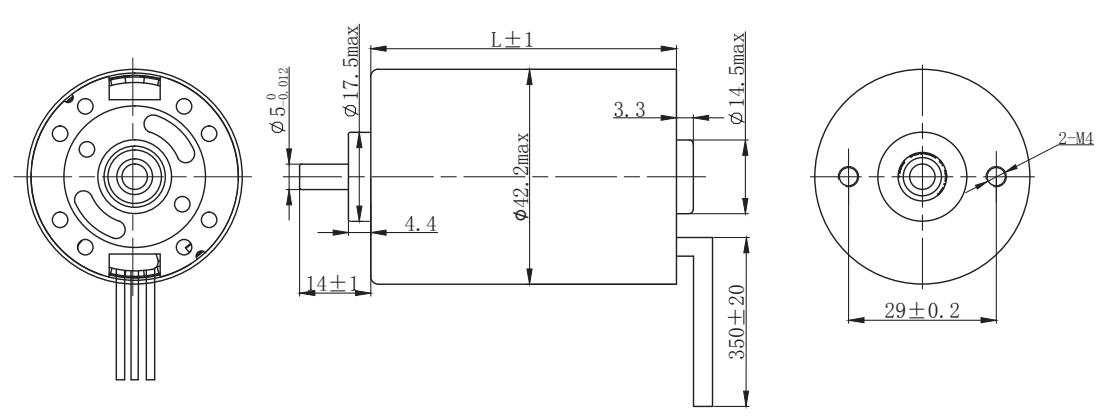

FL42CBL-IE
产品中心 一体化系列
- 人工报价
| 极数 ( Number of poles ) | 4 |
|---|---|
| 相数 ( Number of phases ) | 3 |
| 额定转矩 ( Rated torque) | mN.m | 68 | 100 |
| 连续运行转矩 ( Continuous stall torque) | mN.m | 81.6 | 120 |
| 额定速度 ( Rated speed ) | RPM | 5900 | 3000 |
| 额定功率 ( Rated power ) | W | 43 | 31 |
| 峰值转矩 ( Peak torque ) | mN.m | 92 | 200 |
| 峰值电流 ( Peak current ) | A | 3 | 3 |
| 线电阻 ( Line to line resistance ) | ohms@20℃ | 0.82 | 2.5 |
| 线电感 ( Line to line inductance ) | mH | 1.2 | 3.3 |
| 转矩常数 ( Torque constant ) | mN.m/A | 33.75 | 65 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 2.5 | 4.82 |
| 转动惯量 ( Rotor inertia ) | g.cm2 | 44 | 55 |
| 机身长度 ( Motor length ) L | mm | 60 | 66 |
| 重量 ( Weight ) | Kg | 0.35 | 0.44 |
| FL42CBL60-24V-5943-IE | 293.72 KB |
| FL42CBL66-24V-3031A-IE | 234.32 KB |
