FL45BLW
产品中心 外转子无刷电机
- 人工报价
| 绕组连接方式 ( Winding Type ) | 星形 ( Star connection) |
|---|---|
| 霍尔分布角度 ( Hall Effect Angle ) | 120度电角度 ( Electrical Angle of 120 degree) |
| 径向间隙 ( Radial Play ) | 0.02mm@450g |
| 轴向间隙 ( Axial Play ) | 0.14mm@450g |
| 最大径向负载 ( Max radial force ) | 20N 距法兰10mm ( 10mm From the flange) |
| 最大轴向负载 ( Max axial force ) | 10N |
| 介电强度 ( Dielectric Strength ) | 600VAC/1S |
| 绝缘电阻 ( Insulation Resistance ) | 100MΩ, 500VDC |
| 环境温度 ( Ambient Temperature ) | -20°C ~ +50°C |
| 绝缘等级 (Insulation Class) | Class B |
| 极数 ( Number of poles ) | 16 |
| 相数 ( Number of phases ) | 3 |
| 额定电压 ( Rated voltage ) | VDC | 24 |
| 额定转矩 ( Rated torque) | mN.m | 50 | 84 | 130 |
| 连续运行转矩 ( Continuous stall torque) | mN.m | 60 | 100 | 156 |
| 额定速度 ( Rated speed ) | RPM | 5000 | 5260 | 4840 |
| 额定功率 ( Rated power ) | W | 30 | 50 | 70 |
| 峰值转矩 ( Peak torque ) | mN.m | 150 | 250 | 390 |
| 峰值电流 ( Peak current ) | A | 4.3 | 7.4 | 11 |
| 线电阻 ( Line to line resistance ) | ohms@20℃ | 1.42 | 0.72 | 0.56 |
| 线电感 ( Line to line inductance ) | mH | 0.59 | 0.33 | 0.27 |
| 转矩常数 ( Torque constant ) | mN.m/A | 35.2 | 34.4 | 37.1 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 2.61 | 2.55 | 2.75 |
| 转动惯量 ( Rotor inertia ) | g.cm2 | 100 | 135 | 180 |

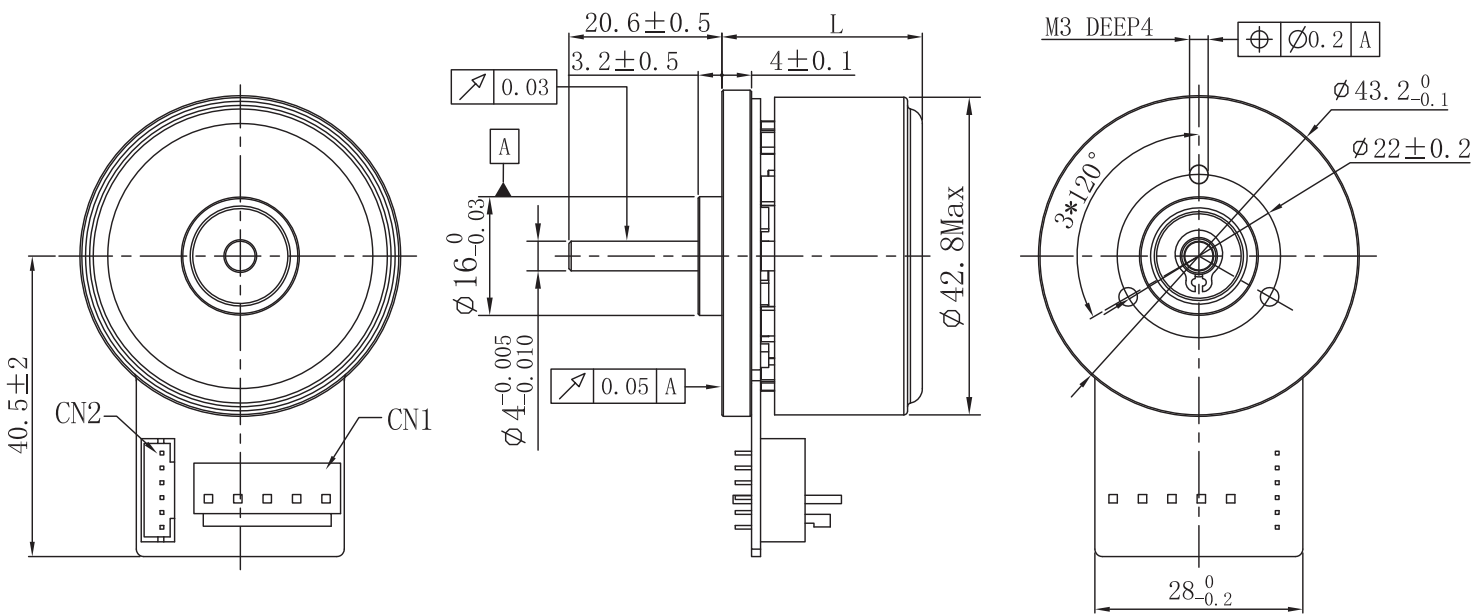

| 机身长度 ( Motor length ) L | mm | 18 | 21.6 | 27 |
| 重量 ( Weight ) | Kg | 0.08 | 0.12 | 0.15 |
| FL45BLW27-24V-6170A | 157.88 KB |
| FL45BLW21-24V-6750A | 160.9 KB |
| FL45BLW18-24V-7130A | 161.6 KB |
产品详情
产品中心 外转子无刷电机
接线说明(Electric Connection)
| 接插件型号Connector Model | Pin位Pin number | 功能Functions |
| JST B6B-PH-K-S | Pin 2 | 霍尔电源正 ( Vcc ) |
| Pin 3 | 霍尔 U ( Hu ) | |
| Pin 4 | 霍尔 V ( Hv ) | |
| Pin 5 | 霍尔 W ( Hw ) | |
| Pin 1/ Pin 6 | 霍尔电源负 ( GND ) | |
| JST B5P-VH | Pin 2 | U相 ( Phase U ) |
| Pin 3 | V相 ( Phase V ) | |
| Pin 4 | W相 ( Phase W ) | |
| Pin 1/ Pin 5 | 电源负 ( GND ) |
该款电机可以根据客户需求定制。
