FL57BL-IEX
产品中心 一体化系列
- 人工报价
| 极数 ( Number of poles ) | 4 |
|---|---|
| 相数 ( Number of phases ) | 3 |
| 额定电压 ( Rated voltage ) | VDC | 24 |
| 额定转矩 ( Rated torque) | N.m | 0.055 | 0.11 | 0.22 |
| 连续运行转矩 ( Continuous stall torque) | N.m | 0.066 | 0.132 | 0.264 |
| 额定速度 ( Rated speed ) | RPM | 4000 | 4000 | 4000 |
| 额定功率 ( Rated power ) | W | 25 | 46 | 99 |
| 峰值转矩 ( Peak torque ) | N.m | 0.15 | 0.22 | 0.22 |
| 峰值电流 ( Peak current ) | A | 4.0 | 6.0 | 6.0 |
| 线电阻 ( Line to line resistance ) | ohms@20℃ | 2.1 | 0.82 | 0.35 |
| 线电感 ( Line to line inductance ) | mH | 4.1 | 2.3 | 1.0 |
| 转矩常数 ( Torque constant ) | N.m/A | 0.04 | 0.04 | 0.04 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 3.0 | 3.0 | 3.0 |
| 转动惯量 ( Rotor inertia ) | g.cm2 | 30 | 75 | 119 |

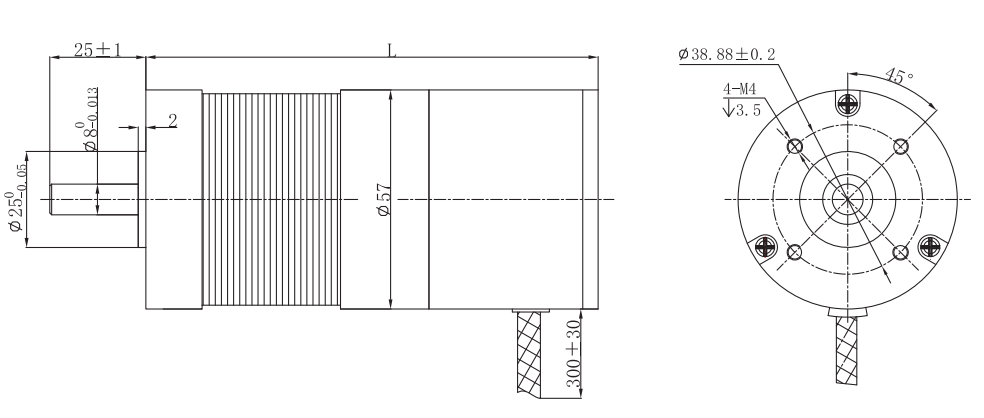

| 机身长度 ( Motor length ) L | mm | 80 | 90 | 120 |
| 重量 ( Weight ) | Kg | 0.5 | 0.6 | 0.8 |
| FL57BL01-36V-4000IEX | 238.06 KB |
| FL57BL02-36V-4000IEX | 238.27 KB |
| FL57BL005-36V-4000IEX | 238.84 KB |
