FL60STH
产品中心 1.8°两相步进电机
- 人工报价
| 项目（Item） | 说明（Specifications） |
|---|---|
| 步距角（Step Angle） | 1.8° |
| 步距角精度（Step Angle Accuracy） | ±5% (整步无负载，full step, no load) |
| 径向间隙（ Radial Play） | 0.02mm@450 g |
| 轴向间隙（ Axial Play） | 0.08mm@450 g |
| 最大径向负载（Max. radial force） | 75N 距法兰20mm (20mm from the flange) |
| 最大轴向负载（Max. axial force） | 15N |
| 介电强度（Dielectric Strength） | 600VAC / 1s |
| 绝缘电阻（Insulation Resistance） | 100MΩ ,500VDC |
| 环境温度（Ambient Temperature） | -20℃~+50℃ |
| 绝缘等级（Insulation Class） | Class B |
| FL60STH45-2008AF（单极性(unipolar)）·每相电流 | 2 |
| FL60STH45-2008AF（单极性(unipolar)）·每相电阻 | 1.5 |
| FL60STH45-2008AF（单极性(unipolar)）·每相电感 | 2 |
| FL60STH45-2008AF（单极性(unipolar)）·保持转矩 | 0.78 |
| FL60STH45-2008AF（单极性(unipolar)）·定位转矩 | 0.05 |

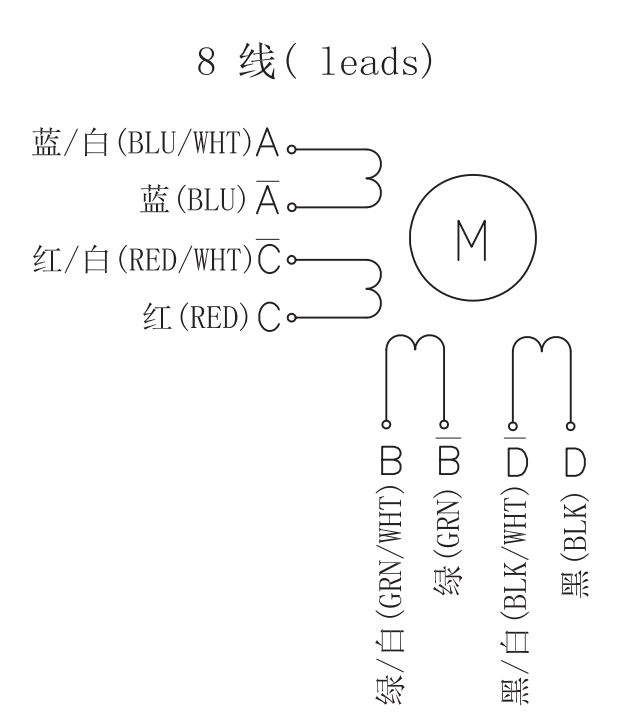

| FL60STH45-2008AF（单极性(unipolar)）·引出线数 | 8 |
| FL60STH45-2008AF（单极性(unipolar)）·转动惯量 | 275 |
| FL60STH45-2008AF（单极性(unipolar)）·重量 | 0.6 |

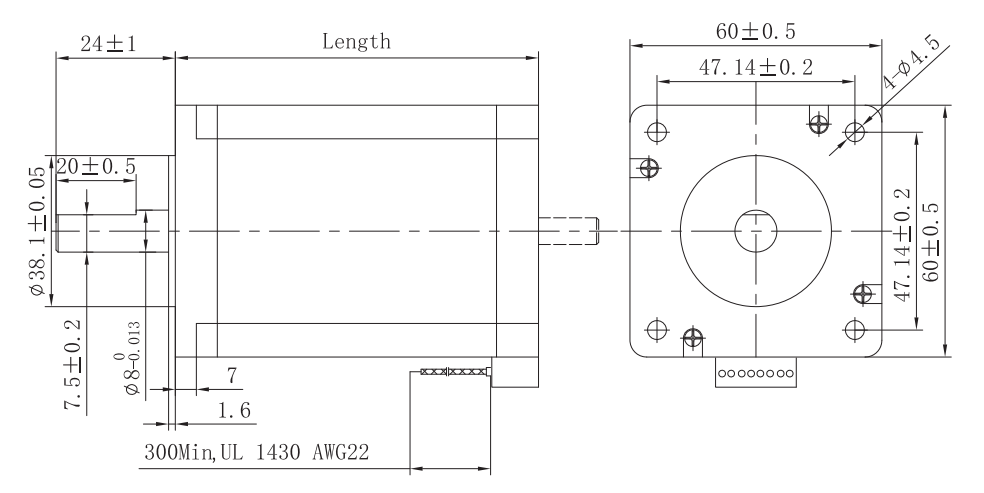

| FL60STH45-2008AF（单极性(unipolar)）·机身长度 | 47±1 |
| FL60STH45-2008AF（并联(parallel)）·每相电流 | 0.75 |
| FL60STH45-2008AF（并联(parallel)）·每相电阻 | 2 |
| FL60STH45-2008AF（并联(parallel)）·每相电感 | 1.1 |
| FL60STH45-2008AF（串联(series)）·每相电流 | 3.0 |
| FL60STH45-2008AF（串联(series)）·每相电阻 | 8 |
| FL60STH45-2008AF（串联(series)）·每相电感 | 1.1 |
| FL60STH56-2008AF（单极性(unipolar)）·每相电流 | 2 |
| FL60STH56-2008AF（单极性(unipolar)）·每相电阻 | 1.8 |
| FL60STH56-2008AF（单极性(unipolar)）·每相电感 | 3.6 |
| FL60STH56-2008AF（单极性(unipolar)）·保持转矩 | 1.17 |
| FL60STH56-2008AF（单极性(unipolar)）·定位转矩 | 0.07 |
| FL60STH56-2008AF（单极性(unipolar)）·引出线数 | 8 |
| FL60STH56-2008AF（单极性(unipolar)）·转动惯量 | 400 |
| FL60STH56-2008AF（单极性(unipolar)）·重量 | 0.77 |
| FL60STH56-2008AF（单极性(unipolar)）·机身长度 | 56±1 |
| FL60STH56-2008AF（并联(parallel)）·每相电流 | 0.9 |
| FL60STH56-2008AF（并联(parallel)）·每相电阻 | 3.6 |
| FL60STH56-2008AF（并联(parallel)）·每相电感 | 1.65 |
| FL60STH56-2008AF（串联(series)）·每相电流 | 3.6 |
| FL60STH56-2008AF（串联(series)）·每相电阻 | 14.4 |
| FL60STH56-2008AF（串联(series)）·每相电感 | 1.65 |
| FL60STH65-2008AF（单极性(unipolar)）·每相电流 | 2 |
| FL60STH65-2008AF（单极性(unipolar)）·每相电阻 | 2.4 |
| FL60STH65-2008AF（单极性(unipolar)）·每相电感 | 4.6 |
| FL60STH65-2008AF（单极性(unipolar)）·保持转矩 | 1.5 |
| FL60STH65-2008AF（单极性(unipolar)）·定位转矩 | 0.09 |
| FL60STH65-2008AF（单极性(unipolar)）·引出线数 | 8 |
| FL60STH65-2008AF（单极性(unipolar)）·转动惯量 | 570 |
| FL60STH65-2008AF（单极性(unipolar)）·重量 | 1.2 |
| FL60STH65-2008AF（单极性(unipolar)）·机身长度 | 67±1 |
| FL60STH65-2008AF（并联(parallel)）·每相电流 | 1.2 |
| FL60STH65-2008AF（并联(parallel)）·每相电阻 | 4.6 |
| FL60STH65-2008AF（并联(parallel)）·每相电感 | 2.1 |
| FL60STH65-2008AF（串联(series)）·每相电流 | 4.8 |
| FL60STH65-2008AF（串联(series)）·每相电阻 | 18.4 |
| FL60STH65-2008AF（串联(series)）·每相电感 | 2.1 |
| FL60STH86-2008AF（单极性(unipolar)）·每相电流 | 2 |
| FL60STH86-2008AF（单极性(unipolar)）·每相电阻 | 3 |
| FL60STH86-2008AF（单极性(unipolar)）·每相电感 | 6.8 |
| FL60STH86-2008AF（单极性(unipolar)）·保持转矩 | 2.1 |
| FL60STH86-2008AF（单极性(unipolar)）·定位转矩 | 0.12 |
| FL60STH86-2008AF（单极性(unipolar)）·引出线数 | 8 |
| FL60STH86-2008AF（单极性(unipolar)）·转动惯量 | 840 |
| FL60STH86-2008AF（单极性(unipolar)）·重量 | 1.4 |
| FL60STH86-2008AF（单极性(unipolar)）·机身长度 | 88±1 |
| FL60STH86-2008AF（并联(parallel)）·每相电流 | 1.5 |
| FL60STH86-2008AF（并联(parallel)）·每相电阻 | 6.8 |
| FL60STH86-2008AF（并联(parallel)）·每相电感 | 3.0 |
| FL60STH86-2008AF（串联(series)）·每相电流 | 6 |
| FL60STH86-2008AF（串联(series)）·每相电阻 | 27.2 |
| FL60STH86-2008AF（串联(series)）·每相电感 | 3.0 |
| FL60STH45-2008AF | 169.18 KB |
| FL60STH56-2008AF | 169.66 KB |
| FL60STH65-2008AF | 172.63 KB |
| FL60STH86-2008AF | 170.07 KB |
产品详情
产品中心 1.8°两相步进电机
该款电机可以根据客户需求定制。
