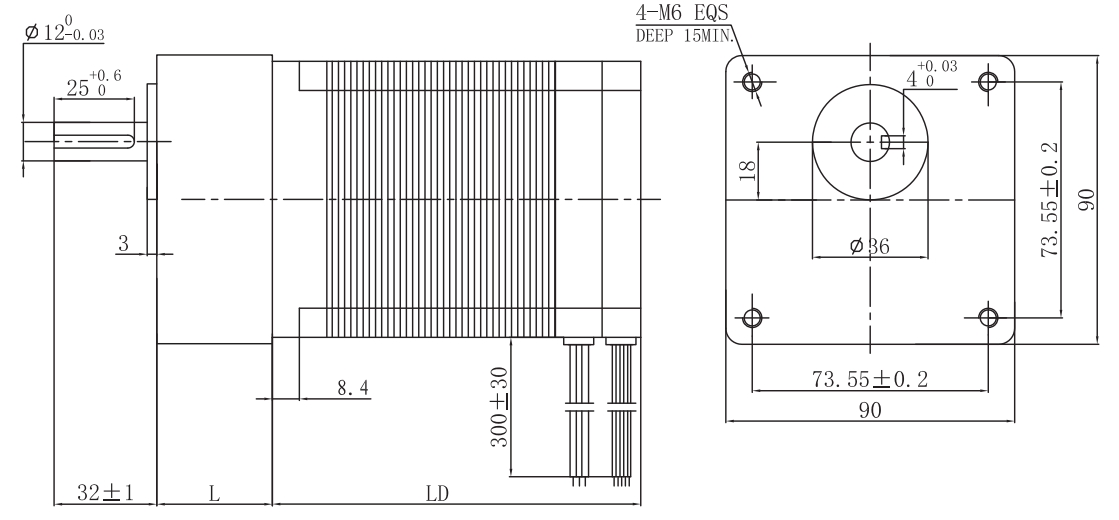

FL86BLS-90JB
产品中心 正齿轮箱
- 人工报价
| 减速比(Ratio) | L2(mm) | L1(mm) |
|---|---|
| FL86BLS58-90JB | FL86BLS71-90JB | FL86BLS98-90JB | FL86BLS125-90JB |
| 3---15 | 72 | 86 | 112 | 139 | 42 |
| 18---120 | 72 | 86 | 112 | 139 | 60 |
产品详情
产品中心 正齿轮箱
齿轮箱参数(Spur Gearbox Specifications)
| 减速比(Ratio) | 3 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 |
| 重量|(Weight) | 1.3kg | 1.5kg | ||||||||||||||||||
| 减速级数(Number Of gear trains) | 2 | 3 | 4 | |||||||||||||||||
| 额定转矩(Nominal torque) | 30N.m | |||||||||||||||||||
| 极限转矩(Ultimate torque) | 45N.m | |||||||||||||||||||
| 效率(Efficiency) | 0.81 | 0.73 | 0.66 | |||||||||||||||||
| 回差(Backlash) | 4 deg | 3.5deg | 2.5deg |
正齿轮箱无刷直流电机参数(Spur Geared BLDC Motor Specifications)：
| 减速比(Ratio) | 3 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | |
| FL86BLS58-90JB | 额定转矩(Rated torque) (N.m) | 0.85 | 1.42 | 1.7 | 2.13 | 2.55 | 2.84 | 3.54 | 4.25 | 4.6 | 5.11 | 6.38 | 7.67 | 9.2 | 9.24 | 11.6 | 13.8 | 17.3 | 20.8 | 23.1 | 27.7 |
| 额定转速(Rated speed) (RPM) | 1000 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | 83.3 | 75 | 60 | 50 | 40 | 33.3 | 30 | 25 | |
| 极限转矩(Ultimate torque) (N.m) | 2.55 | 4.25 | 5.1 | 6.38 | 7.65 | 8.52 | 10.6 | 12.7 | 13.8 | 15.3 | 19.1 | 23 | 27.6 | 27.7 | 34.8 | 41.4 | 45 | ||||
| FL86BLS71-90JB | 额定转矩(Rated torque) (N.m) | 1.7 | 2.84 | 3.4 | 4.25 | 5.1 | 5.67 | 7.08 | 8.5 | 9.2 | 10.2 | 12.8 | 15.3 | 18.4 | 18.5 | 23.1 | 27.7 | --- | --- | --- | --- |
| 额定转速(Rated speed) (RPM) | 1000 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | 83.3 | 75 | 60 | 50 | --- | --- | --- | --- | |
| 极限转矩(Ultimate torque) (N.m) | 5.1 | 8.52 | 10.2 | 12.7 | 15.3 | 17 | 21.2 | 25.5 | 27.6 | 30.6 | 38.4 | 45 | --- | --- | --- | --- | |||||
| FL86BLS98-90JB | 额定转矩(Rated torque) (N.m) | 3.4 | 5.67 | 6.8 | 8.5 | 10.2 | 11.3 | 14.2 | 17 | 18.4 | 20.4 | 25.5 | 30.6 | --- | --- | --- | --- | --- | --- | --- | --- |
| 额定转速(Rated speed) (RPM) | 1000 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | --- | --- | --- | --- | --- | --- | --- | --- | |
| 极限转矩(Ultimate torque) (N.m) | 10.2 | 17 | 20.4 | 25.5 | 30.6 | 33.9 | 42.6 | 45 | --- | --- | --- | --- | --- | --- | --- | --- | |||||
| FL86BLS125-90JB | 额定转矩(Rated torque) (N.m) | 5.1 | 8.5 | 10.2 | 12.7 | 15.3 | 17 | 21.2 | 25.5 | 27.5 | 30.6 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| 额定转速(Rated speed) (RPM) | 1000 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | |
| 极限转矩(Ultimate torque) (N.m) | 15.3 | 25.5 | 30.6 | 38.1 | 45 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
