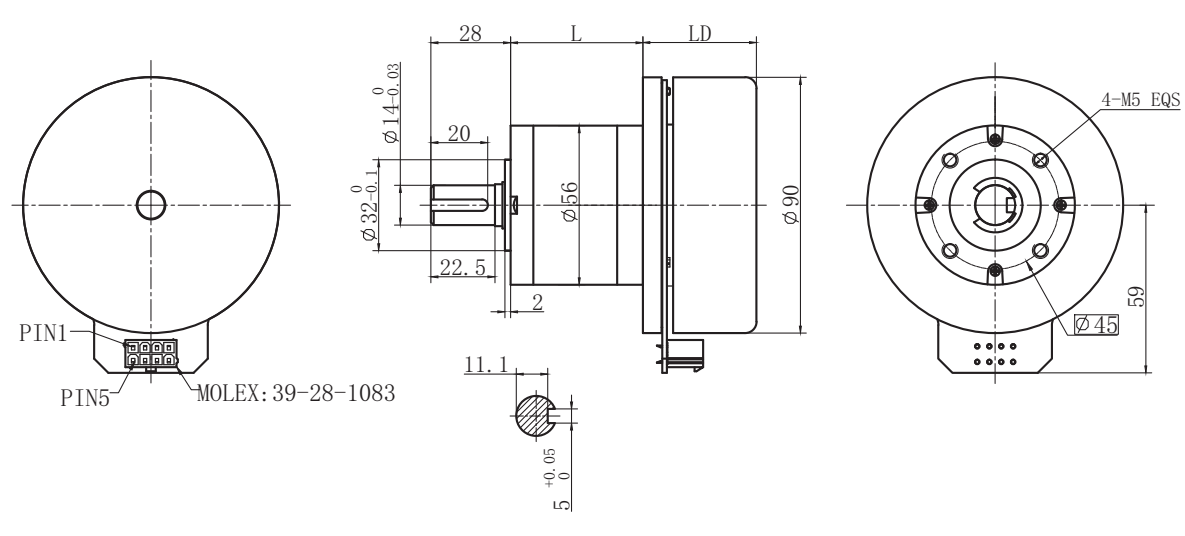

FL90BLW-56JM450K
产品中心 行星减速箱
- 人工报价
| 型号 | 范围 |
|---|---|
| FL90BLW27/56JM450K | Φ56减速器，允许转矩范围：4.0N.m~45N.m 56mm OD Planetary Gearbox, Permissible Load Range: 4.0N.m~45N.m |
| № | Pin | 接插件型号Type | 功 能Functions | 说 明Description |
| 1 | PIN3 | MOLEX39-28-1083 | 霍尔电源正 (Vcc) |
| 2 | PIN1 | MOLEX39-28-1083 | 霍尔U (Hu) |
| 3 | PIN2 | MOLEX39-28-1083 | 霍尔V (Hv) |
| 4 | PIN5 | MOLEX39-28-1083 | 霍尔W (Hw) |
| 5 | PIN6 | MOLEX39-28-1083 | 霍尔电源负 (GND) |
| 6 | PIN7 | MOLEX39-28-1083 | 相U (Phase U) |
| 7 | PIN8 | MOLEX39-28-1083 | 相V (Phase V) |
| 8 | PIN4 | MOLEX39-28-1083 | 相W (Phase W) |
| 电机型号 | 极 数 | 相 数 | 额定电压 | 空载转速 | 额定转速 | 额定转矩 | 额定功率 | 峰值转矩 | 峰值电流 | 电 阻 | 电 感 |
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| FL90BLW27-24V-37130A | 22 | 3 | 24 | 3400 | 2700 | 0.457 | 130 | 1.6 | 23 | 0.21 | 0.19 |
| FL90BLW40-48V-16170A | 22 | 3 | 48 | 1950 | 1670 | 0.964 | 169 | 3 | 13 | 0.65 | 0.9 |
产品详情
产品中心 行星减速箱
BLDC Planetary Gear Moto （Ring Gear Material: Metal）
无刷行星齿轮减速电机主要技术参数 Brushless Gear Motor Technical Data
| 减 速 比 Reduction ratio | 3.6 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 | |
| 减速级数 Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | |
| 减速器长度(L) Length(L) | mm | 40.3 | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 80.6 | 80.6 |
| 额定转速 Rated speed | r/min | 750 | 635 | 507 | 208 | 180 | 150 | 117 | 96 | 63 | 52 | 44 | 38 | 28 | 22 | 18 | 14 |
| 额定转矩 Rated torque | N.m | 1.5 | 1.8 | 2 | 4.8 | 5.6 | 6.7 | 8.5 | 10 | 14 | 17 | 20 | 24 | 32 | 36 | 45 | 45 |
| 最大瞬间允许负载Max. permissible load in a short time | N.m | 12 | 12 | 12 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 |
无刷行星齿轮减速电机主要技术参数 Brushless Gear Motor Technical Data
| 减 速 比 Reduction ratio | 3.6 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | |
| 减速级数 Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | |
| 减速器长度(L) Length(L) | mm | 40.3 | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 |
| 额定转速 Rated speed | r/min | 464 | 393 | 313 | 128 | 111 | 93 | 73 | 60 | 39 | 32 | 27 | 23 | 17 |
| 额定转矩 Rated torque | N.m | 3.1 | 3.7 | 4.2 | 10 | 12 | 14 | 18 | 22 | 30 | 37 | 43 | 45 | 45 |
| 最大瞬间允许负载Max. permissible load in a short time | N.m | 12 | 12 | 12 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 90 | 90 | 90 |
配置FL90BLW27-24V-37130A无刷直流电机(LD=27mm) FL90BLW27-24V-37130A BLDC Motor(LD=27mm)
配置FL90BLW40-48V-16170A无刷直流电机(LD=40mm) FL90BLW40-48V-16170A BLDC Motor(LD=40mm)
