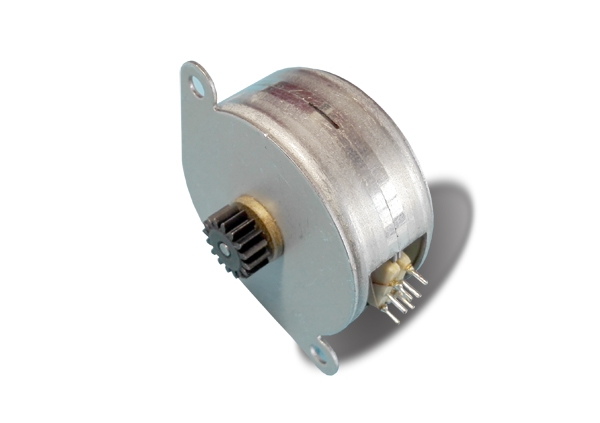

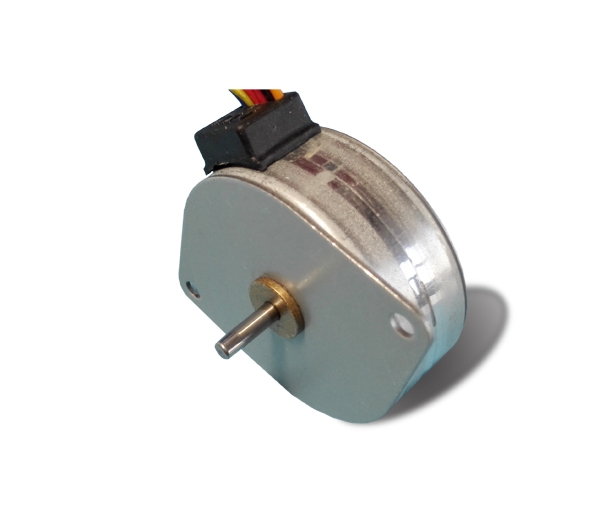

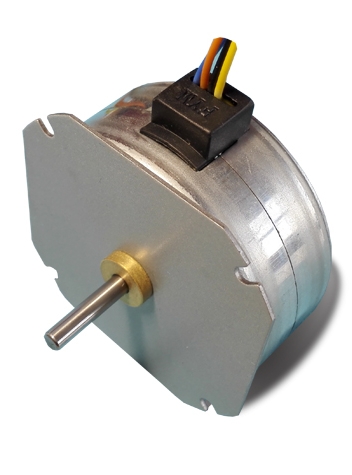

PM35/42/49/57
产品中心 PM步进电机
- 人工报价
| Item | Specifications |
|---|---|
| 步距角精度Step Angle Accuracy | ±8% (整步空载full step, no load) |
| 电阻公差Resistance Accuracy | ±10% |
| 电感公差Inductance Accuracy | ±20% |
| 温升Temperature Rise | 80。C Max.(额定电流，2相通电 rated current,2 phase on) |
| 环境温度Ambient Temperature | -20℃+50℃ |
| 绝缘电阻Insulation Resistance | 100MΩMin. ,500VDC |
| 介电强度Dielectric Strength | 500VAC/1s |
| 径向间隙Shaft Radial Play | 0.06Max. (450 g-load) |
| 轴向间隙Shaft Axial Play | 0.08Max. (450 g-load) |

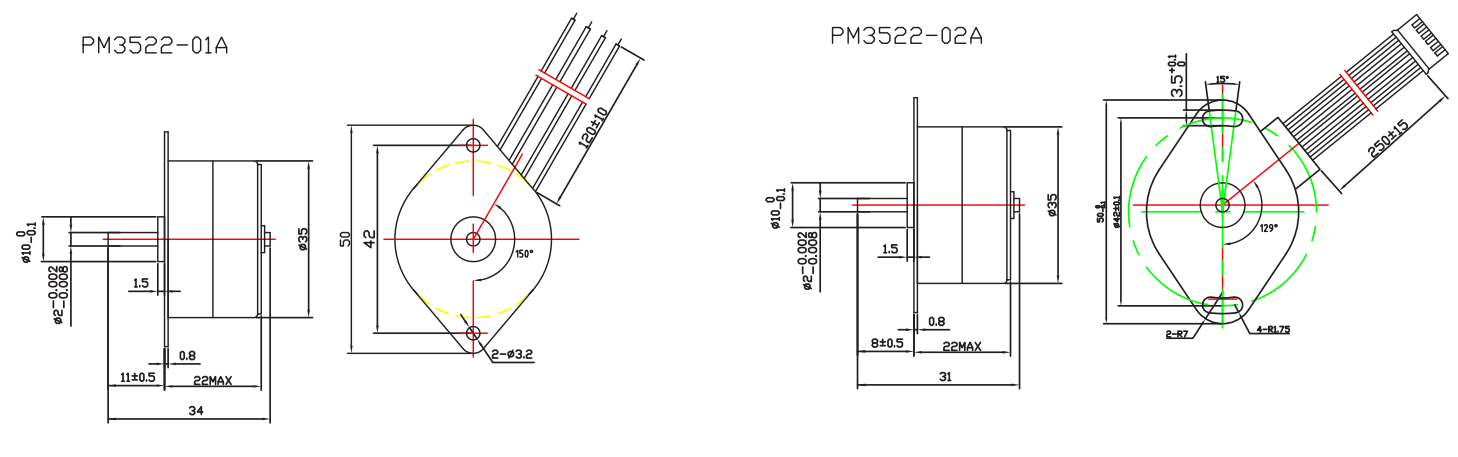

| PM3522-01A·步距角 | 15 |
| PM3522-01A·相数 | 2 |
| PM3522-01A·电压 | 5 |
| PM3522-01A·相电流 | 0.46 |
| PM3522-01A·相电阻 | 11 |
| PM3522-01A·保持力矩 | 335 |
| PM3522-01A·定位力矩 | 125 |
| PM3522-01A·转子惯量 | 7.5 |

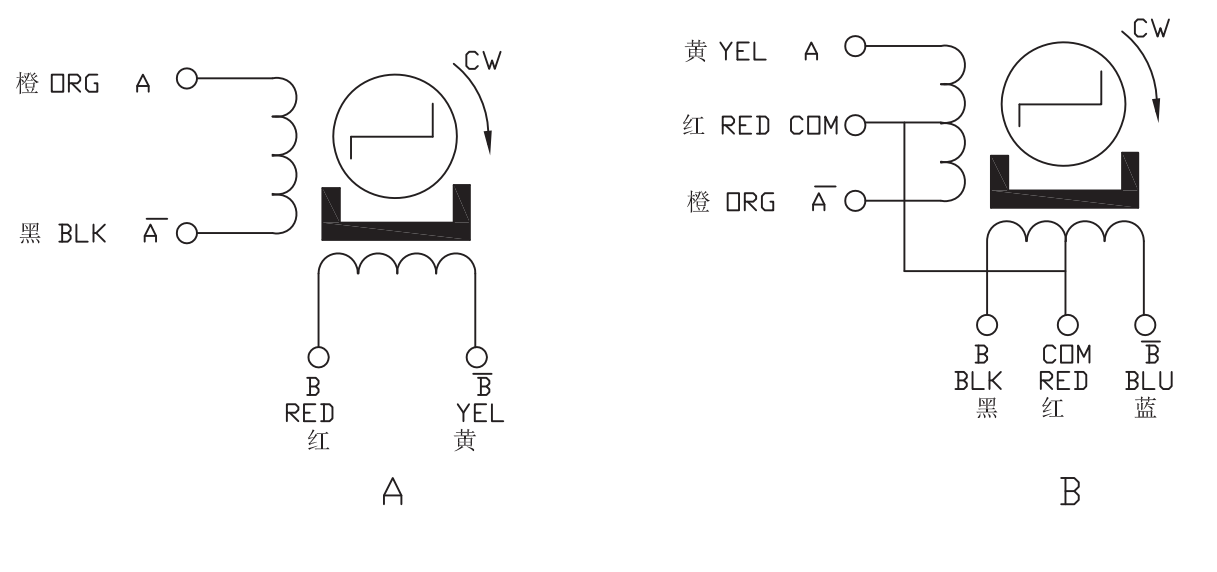

| PM3522-01A·接线图 | A |
| PM3522-02A·步距角 | 15 |
| PM3522-02A·相数 | 4 |
| PM3522-02A·电压 | 5 |
| PM3522-02A·相电流 | 0.46 |
| PM3522-02A·相电阻 | 11 |
| PM3522-02A·保持力矩 | 300 |
| PM3522-02A·定位力矩 | B |

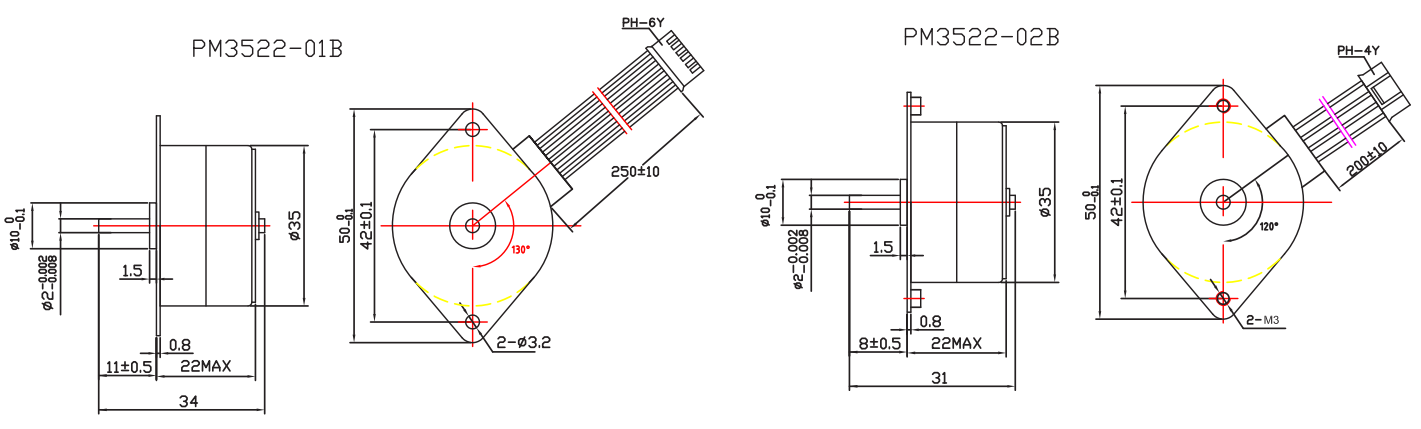

| PM3522-01B·步距角 | 7.5 |
| PM3522-01B·相数 | 4 |
| PM3522-01B·电压 | 5 |
| PM3522-01B·相电流 | 0.862 |
| PM3522-01B·相电阻 | 5.8 |
| PM3522-01B·保持力矩 | 550 |
| PM3522-02B·步距角 | 7.5 |
| PM3522-02B·相数 | 2 |
| PM3522-02B·电压 | 5 |
| PM3522-02B·相电流 | 0.5 |
| PM3522-02B·相电阻 | 10 |
| PM3522-02B·保持力矩 | A |

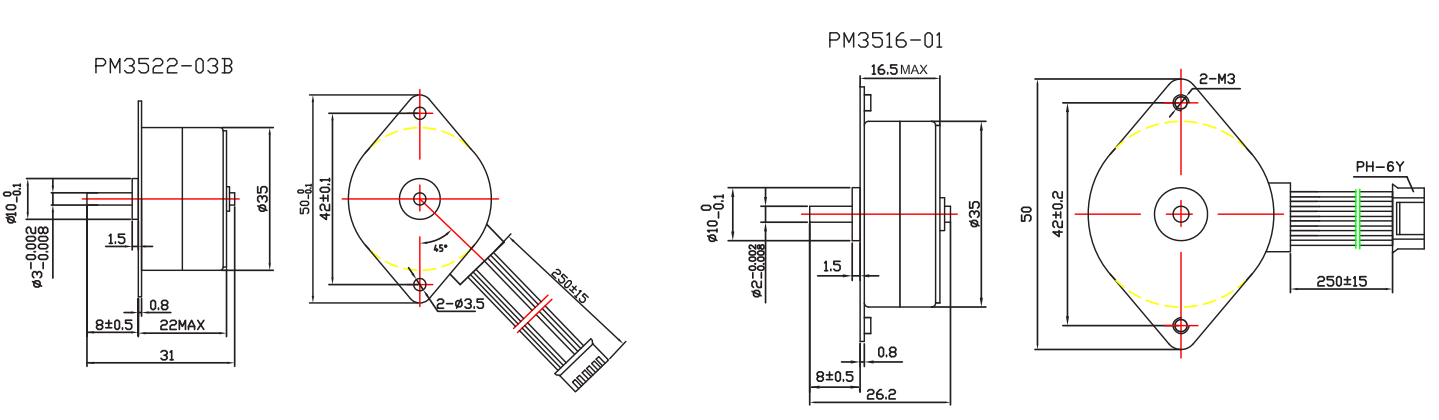

| PM3522-03B·步距角 | 7.5 |
| PM3522-03B·相数 | 2 |
| PM3522-03B·电压 | 12 |
| PM3522-03B·相电流 | 0.2 |
| PM3522-03B·相电阻 | 608 |
| PM3516-01·步距角 | 7.5 |
| PM3516-01·相数 | 4 |
| PM3516-01·电压 | 12 |
| PM3516-01·相电流 | 0.255 |
| PM3516-01·相电阻 | 47 |
| PM3516-01·保持力矩 | 300 |
| PM3516-01·定位力矩 | 65 |
| PM3516-01·转子惯量 | B |

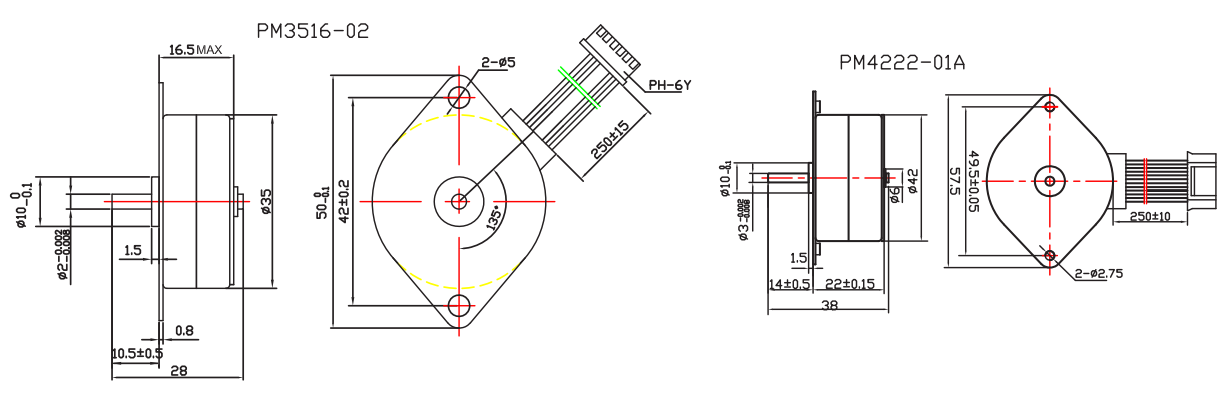

| PM3516-02·步距角 | 7.5 |
| PM3516-02·相数 | 2 |
| PM3516-02·电压 | 5 |
| PM3516-02·相电流 | 0.42 |
| PM3516-02·相电阻 | 12 |
| PM3516-02·保持力矩 | 350 |
| PM3516-02·定位力矩 | 75 |
| PM3516-02·转子惯量 | A |
| PM4222-01A·步距角 | 7.5 |
| PM4222-01A·相数 | 4 |
| PM4222-01A·电压 | 12 |
| PM4222-01A·相电流 | 0.8 |
| PM4222-01A·相电阻 | 15 |
| PM4222-01A·保持力矩 | 800 |
| PM4222-01A·定位力矩 | 210 |
| PM4222-01A·转子惯量 | 9.6 |
| PM4222-01A·接线图 | B |

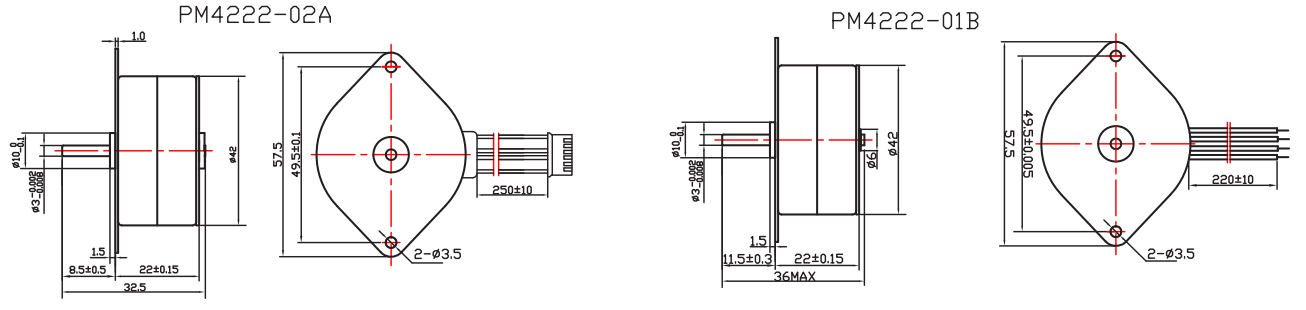

| PM4222-02A·步距角 | 7.5 |
| PM4222-02A·相数 | 2 |
| PM4222-02A·电压 | 4.2 |
| PM4222-02A·相电流 | 0.6 |
| PM4222-02A·相电阻 | 7 |
| PM4222-02A·保持力矩 | 800 |
| PM4222-02A·定位力矩 | 210 |
| PM4222-02A·转子惯量 | A |
| PM4222-01B·步距角 | 7.5 |
| PM4222-01B·相数 | 2 |
| PM4222-01B·电压 | 12 |
| PM4222-01B·相电流 | 0.13 |
| PM4222-01B·相电阻 | 95 |
| PM4222-01B·保持力矩 | 550 |
| PM4222-01B·定位力矩 | 100 |
| PM4222-01B·转子惯量 | 7.5 |

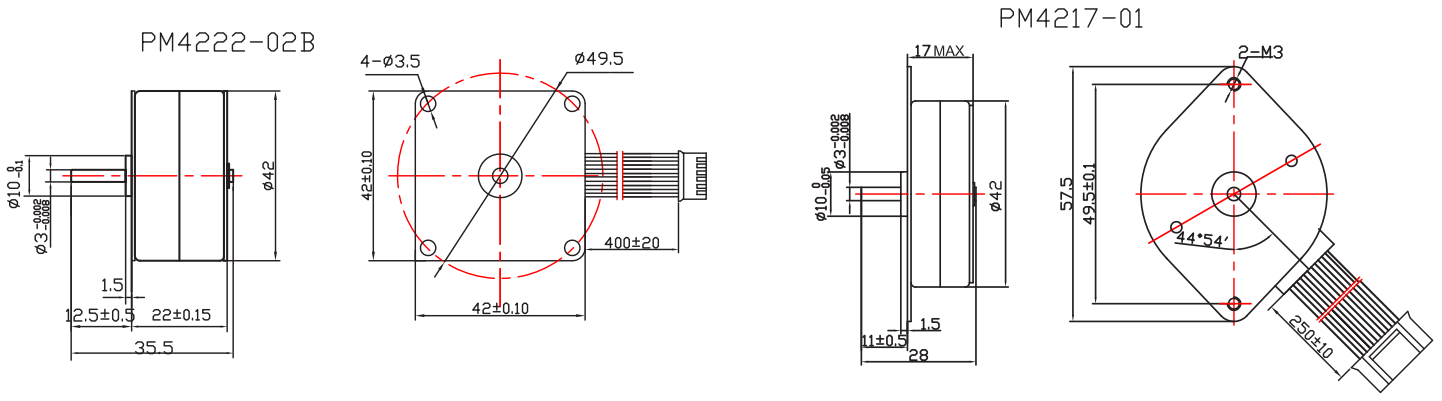

| PM4222-02B·步距角 | 7.5 |
| PM4222-02B·相数 | 4 |
| PM4222-02B·电压 | 5 |
| PM4222-02B·相电流 | 0.81 |
| PM4222-02B·相电阻 | 6.2 |
| PM4222-02B·保持力矩 | 600 |
| PM4222-02B·定位力矩 | 110 |
| PM4222-02B·转子惯量 | B |
| PM4217-01·步距角 | 7.5 |
| PM4217-01·相数 | 4 |
| PM4217-01·电压 | 12 |
| PM4217-01·相电流 | 0.24 |
| PM4217-01·相电阻 | 50 |
| PM4217-01·保持力矩 | 600 |
| PM4217-01·定位力矩 | 90 |
| PM4217-01·转子惯量 | 9.6 |

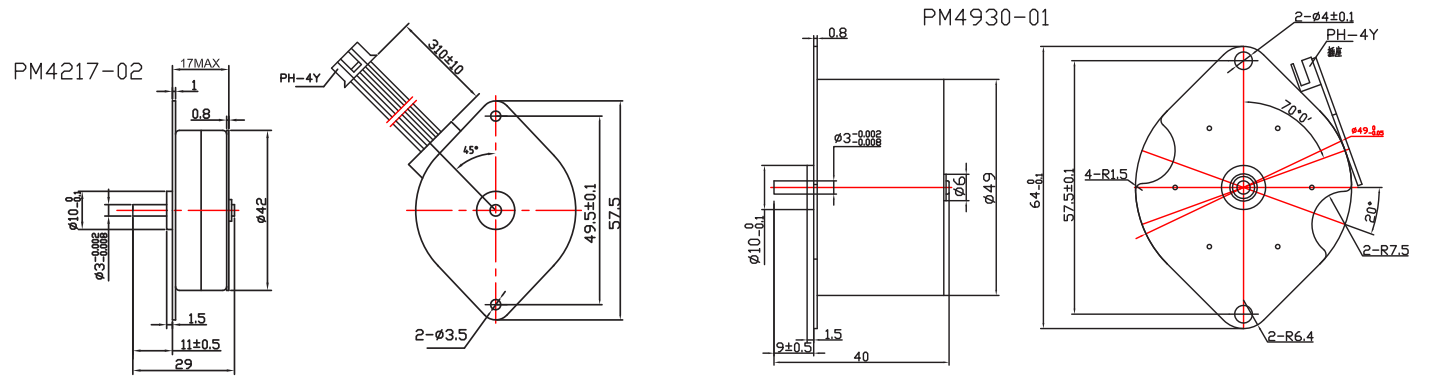

| PM4217-02·步距角 | 7.5 |
| PM4217-02·相数 | 2 |
| PM4217-02·电压 | 5 |
| PM4217-02·相电流 | 0.59 |
| PM4217-02·相电阻 | 8.6 |
| PM4217-02·保持力矩 | 500 |
| PM4217-02·定位力矩 | 100 |
| PM4217-02·转子惯量 | A |
| PM4930-01·步距角 | 7.5 |
| PM4930-01·相数 | 2 |
| PM4930-01·电压 | 5 |
| PM4930-01·相电流 | 0.9 |
| PM4930-01·相电阻 | 5.5 |
| PM4930-01·保持力矩 | 1700 |
| PM4930-01·定位力矩 | 350 |
| PM4930-01·转子惯量 | <14.5 |

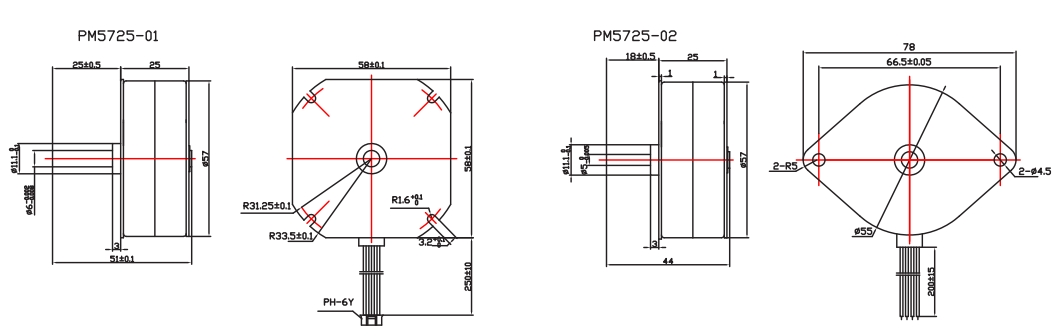

| PM5725-01·步距角 | 7.5 |
| PM5725-01·相数 | 4 |
| PM5725-01·电压 | 12 |
| PM5725-01·相电流 | 0.6 |
| PM5725-01·相电阻 | 21 |
| PM5725-01·保持力矩 | 1500 |
| PM5725-01·定位力矩 | 425 |
| PM5725-01·转子惯量 | <12.5 |
| PM5725-01·接线图 | B |
| PM5725-02·步距角 | 7.5 |
| PM5725-02·相数 | 2 |
| PM5725-02·电压 | 5.6 |
| PM5725-02·相电流 | 0.625 |
| PM5725-02·相电阻 | 9 |
| PM5725-02·保持力矩 | 1200 |
| PM5725-02·定位力矩 | A |
产品详情
产品中心 PM步进电机
该款电机可以根据客户需求定制。
